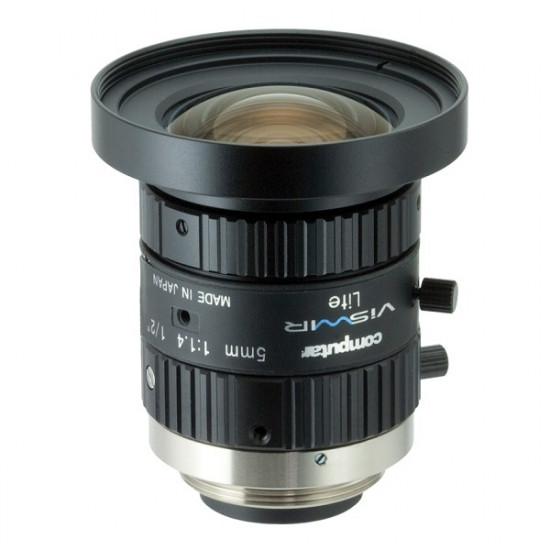

H0514-VSW Computar 1/2" C-Mount 5mm F/1.4 Manual Iris Lens

Features:

• Visible + SWIR sensors
• Unique coating technology delivers high transmission from 400nm to 1,700nm
• High-resolution, low-distortion design offers Megapixel clarity in the hyperspectral application
• Also available in 8mm, 12mm, 16mm, 25mm and 35mm
• Designed around the popular φ8.20mm image circle format
• The industry’s most compact form factor. Fits in most applications

ViSWIR Fixed Focal Length Lens Series Created for the Latest Visible + SWIR Imaging Sensors. ViSWIR Lite achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light. The application of a multilayer coating on the metal lens parts makes it possible to minimize the negative lighting effects.

Specifications

• Model No - H0514-VSW
• Focal Length - 5mm
• Max. Aperture Ratio - 1:1.4
• Max. Image Format - 6.40mm x 5.12mm(φ8.20mm)
• Transmittance - Wavelength Range 400nm - 1700nm
• Operation Range
  • Iris - F1.4 ‐ 16C
  • Focus - 0.1m ‐ 0.9m
• Control
  • Iris - Manual
  • Focus - Manual
• Operating Temperature - -10°C ‐ +50°C
• Angle of View
  • D - IMX990 - 77.8°
  • H - 6.40mm x 5.12mm - 65.5°
  • V - (φ8.20mm) - 54.5°
  • IMX991 - 44.6°
  • 3.20mm x 2.56mm - 35.3°
  • (φ4.10mm) - 28.5°
  • 1/2 type - 76.7°
  • 1/2 type - 65.5°
  • 1/2 type - 51.4°
• Effective Lens Aperture
  • Front - φ27.8mm
  • Rear - φ14.8mm
• Distortion
  • 1/2type - -0.48%(y=4.0)
  • 1/3type - -2.26%(y=3.0)
• Back Focal Length - 10.8mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M43 P=0.75mm
• Dimensions - φ44.5mm x 45.5mm
• Weight - 102g

H0514-VSW Specifications PDF
