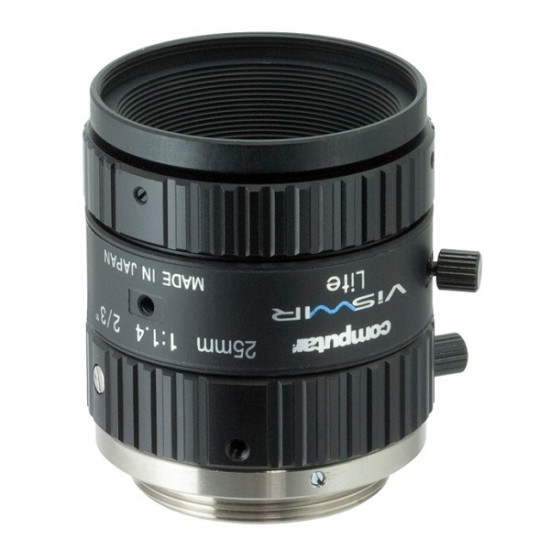

M2514-VSW Computar 2/3" C-Mount 25mm F/1.4 Manual Iris Lens

Features:

• Visible + SWIR sensors
• Unique coating technology delivers high transmission from 400nm to 1,700nm
• High-resolution, the low-distortion design offers Megapixel clarity in the hyperspectral application
• Also available in 8mm, 12mm, 16mm, 35mm, and 50mm
• Designed around the popular φ8.20mm image circle format
• The industry’s most compact form factor. It fits in most applications

ViSWIR Fixed Focal Length Lens Series was created for the latest Visible + SWIR Imaging Sensors. ViSWIR Lite achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light. The application of a multilayer coating on the metal lens parts makes it possible to minimize the negative lighting effects.

Specifications

• Model No - M2514-VSW
• Focal Length - 25mm
• Max. Aperture Ratio - 1:1.4
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Transmittance Wavelength Range - 400nm - 1700nm
• Operation Range
  • Iris - F1.4 ‐ 16C
  • Focus - 0.3m ‐ Inf
• Control
  • Iris - Manual
  • Focus - Manual
• Operating Temperature - -10°C ‐ +50°C
• Angle of View
  • D - IMX990 - 18.6°
  • H - 6.40mm x 5.12mm - 14.6°
  • V - (φ8.20mm) - 11.7°
  • IMX991 - 9.4°
  • 3.20mm x 2.56mm - 7.3°
  • (φ4.10mm) - 5.9°
  • 2/3 type - 24.9°
  • 2/3 type - 20.0°
  • 2/3 type - 15.1°
• Effective Lens Aperture
  • Front - φ17.8mm
  • Rear - φ12.0mm
• Distortion
  • 2/3 type - -0.3%(y=5.5)
  • 1/2type - -0.1%(y=4.0)
• Back Focal Length - 13.1mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M30.5 P=0.5mm
• Dimensions - φ33.5mm x 36mm
• Weight - 71.2g
