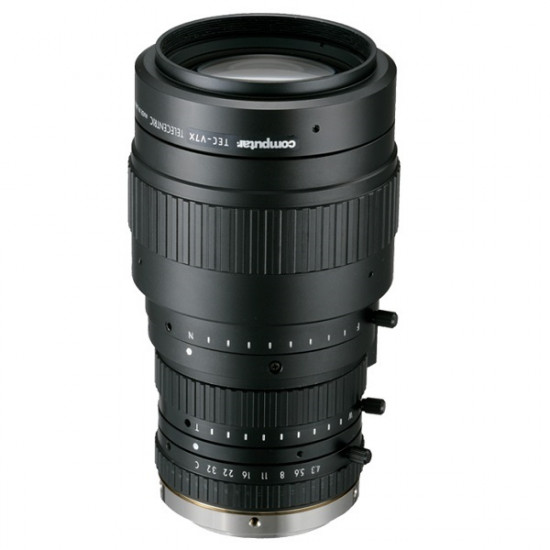

TEC-V7X Computar C-Mount 7x Macro Zoom 182-577.2mm 5.0 Megapixel Telecentric Manual Iris Lens
- Brand: Computar
- Model: TEC-V7X
- SKU: TEC-V7X
- MPN: TEC-V7X
$1,867.00
Features:
- Model Number - TEC-V7X
- Formerly sold as CVL4332-MP
This high performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners.
The TEC-V7X™s unique features provide the versatility to meet a wide range of industrial applications. The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments. This lens is suitable for cameras up to 5 megapixels with 1/1.1™ sensors.
- Optical Magnification - 0.07X - 0.5X
- Max. Magnification - 47.65 - 106.26
- Max. Aperture Ratio - 1:4.3
- Operating range:
- Iris: F4.3-F32
- Focus: 182mm-577.2mm
- Control:
- Iris: Manual Operation
- Focus: Manual Operation
- Zoom: Manual Operation
- Operating Temperature - -10™C ~ 50™C
- Back Focal Length:
- Tele: 39.53mm
- Wide: 49.78mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M62xP0.75
- Dimensions - 61mm x 152.86mm
- Weight - 1.4kg
