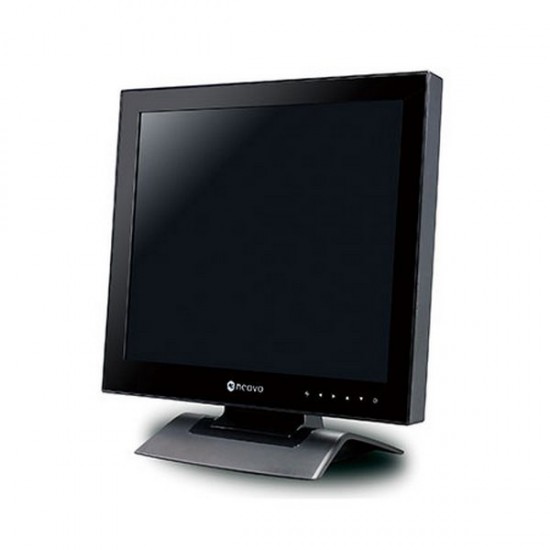

U-17 AG Neovo 17" NeoV Optical Glass LCD Monitor w/ Speakers 1280 x 1024 VGA/DVI

With a bright 17-inch screen, stereo speakers, side-mount headphone jack and USB port, the U-17's multimedia feature set is matched only by its breakthrough power-saving technology. Reduce power consumption up to 50% compared to standard LCD monitors (67% versus CRTs), or cut power usage to zero with EcoSwitch. Add durable touch-sensor controls, best-in-class NeoV Optical Glass, and the U-17 easily becomes the smartest, most eco-friendly choice of professionals.

Specifications

• Panel Type - TFT LCD
• Panel Size - 17.0” (432 mm)
• Max. Resolution - SXGA 1280 x 1024
• Pixel Pitch - 0.264 mm
• Brightness - 250cd/m2 (Typical)
• Contrast Ratio - 1000:1 (Typical)
• Viewing Angle (H/V) - 170°/160° (Typical)
• Display Colour - 16.7M
• Response Time - 3 ms (GTG)z
• Frequency (H/V) - H: 24 kHz - 81 kHz; V: 56 Hz - 75 Hz
• Analog - 15-Pin D-Sub
• Digital - 24-Pin DVI-D
• Audio In - 3.5mm Audio Line-in
• Audio Out - 3.5 mm Headphone Jack
• Speaker - 1W x 2
• AC-DC Adaptor - Internal
• Power Consumption - AC 100 - 240 V, 50 - 60 Hz; < 20 W (On); < 1 W (Stand-by); < 1 W (Off); = 0 W (EcoSwitch off)
• NeoV Optical Glass
  • Thickness - 3.0 mm (0.12”)
  • Reflection Rate - < 1%
  • Transmission Rate - > 96%
  • Coating Hardness - > 9H
• Plug & Play - VESA: DCC 2B, DDC/CI
• Operating Temperature - 0 °C ~ 40 °C
• Operating Humidity - 10% ~ 90%
• Storage Temperature - -20 °C ~ 60 °C
• Storage Humidity - 5% ~ 95%
• Mounting - VESA FPMPMI: Yes (100 mm)
• Tilt - 0° ~ +20°
• Product Dimensions (W x H x D) - 397 x 390 x 174 mm (15.6” x 15.4” x 6.9”)
• Packaging Dimensions (W x H x D) - 480 x 460 x 145 mm (18.9” x 18.1” x 5.7”)
• Product Weight - 5.7 kg (12.5 lbs)
• Packaged Weight - 7 kg (15.4 lbs)
• Certifications & Compliance - UL/CUL, CB, FCC, CE, GOST-R, WEEE, Energy Star, RoHS, REACH, Vista/Basic
• Accessories - Quick Guide, CD ROM (user manual and drivers), audio AC power cord and 15-Pin D-Sub cable

U-17 Specifications PDF
