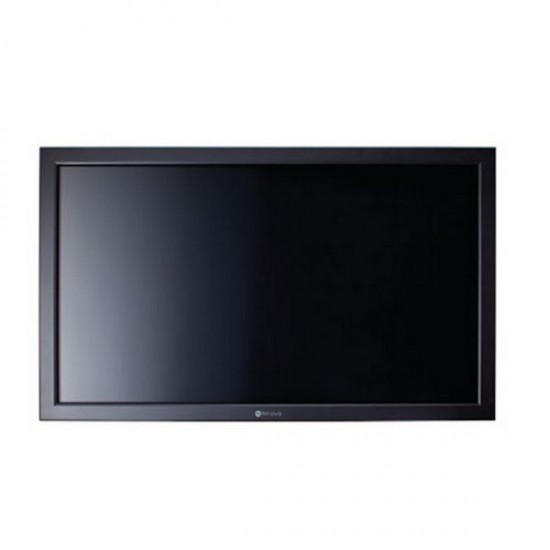

TX-42 AG Neovo 42" LED Monitor Touch-Screen 1920x1080 VGA/DVI/HDMI/BNC

For the best in versatility, durability and now multi-touch interactivity, display professionals choose the AG Neovo TX-W42. Advanced optical touch technology provides accurate, zero-pressure response from any pointing object, even gloved fingers and styluses. With Windows 7 multi-touch compatibility, the TX-W42 is making it possible for audio-visual designers and integrators to develop exciting and interactive applications. Featuring anti-fingerprint NeoV Touch Glass and sturdy metal design, the TX-W42 is designed to perform in point-of-sale systems, directories, information kiosk and other public environments.

Specifications

• Panel Type - TFT LCD
• Panel Size - 42.0”
• Max. Resolution - FHD 1920 x 1080
• Pixel Pitch - 0.485 mm
• Brightness - 450 cd/m2 (Typical)
• Contrast Ratio - 4000:1 (Typical)
• Viewing Angle (H/V) - 178°/178° (Typical)
• Display Colour - 16.7M
• Response Time - 6.5 ms (GTG)
• Frequency (H/V) - H: 24 kHz - 82 kHz; V: 50 Hz - 85 Hz
• VGA - 15-Pin D-Sub
• DVI - 24-Pin DVI-D
• CVBS - BNC x 2
• S-Video - 4-Pin mini DIN
• Component (YPbPr) - RCA x 2
• CVBS - BNC x 2
• S-Video - 4-Pin mini DIN
• RS-232C in/out - 9-Pin D-Sub
• Audio In
  • 1 x stereo audio in for PC (3.5 Ø)
  • 1 x stereo audio in for CVBS (RCA)
  • 1 x stereo audio in for S-Video (RCA)
  • 2 x stereo audio in for YPbPr (RCA)
• Audio Out - 1 x stereo audio out for CVBS (RCA)
• Speaker - 2W x 2
• Touch Screen
  • Technology - Optical
  • Positional Accuracy - ±3mm over 95% of touchable area
  • Active Force - None required
  • Panel Interface - USB 1.1 (Full speed, HID compliant)
• DC Output - 12V / 350 mA, DC jack 2.5 Ø
• Power Consumption - 100 - 240V, 50 - 60 Hz; < 165W (On) / < 10W (Off)
• NeoV Touch Glass
  • Thickness - 3.0 mm (0.18”)
  • Gloss - 100 GU
  • Transmission Rate - > 92%
  • Coating Hardness - > 8H
• Operating Temperature - 0°C ~ 40°C (32°F ~ -104°F)
• Operating Humidity - 10% ~ 85%
• Mounting - VESA FPMPMI: 400 x 200 mm & 600 x 400 mm
• Dimensions (W x H x D)
  • Without Base(W x H x D) - 1011 x 604 x 122 mm(39.8” x 23.8” x 4.8”)
  • With Base(W x H x D) - 1011 x 667 x 190 mm(39.8” x 26.3” x 7.5”)
  • Packaging (W x H x D) - 1180 x 803 x 290 mm(46.5” x 31.6” x11.4”)
• Weight
  • Product Weight w/o base - 27.9 kg (61.4 lbs)
  • Product Weight w/ base - 29.4 kg (64.7 lbs)
  • Packaging Weight w/ base - 34.8 kg (76.6 lbs)
• Certifications & Compliance - FCC, CE, BSMI, RoHS, GOST-R, WEEE, REACH
• Accessories - CD (user manual and touch driver), 15-Pin VGA cable, 24-Pin DVI cable, power cord, audio cable, USB cable, IR remote

TX-42 Specifications PDF
