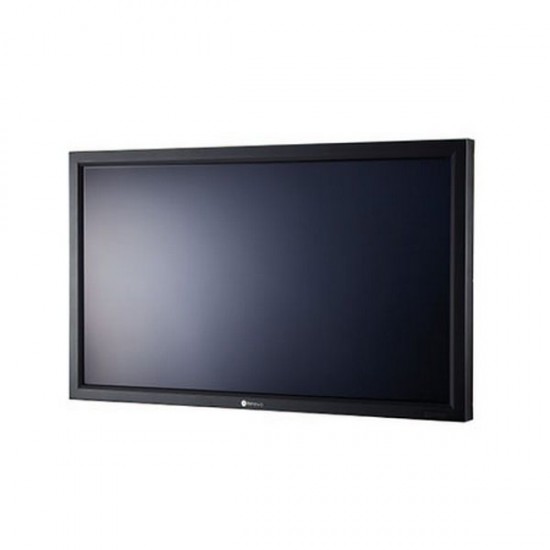

HX-42 AG Neovo 42" LED Monitor 1920 x 1080 VGA/SDI/HDMI/DVI/BNC

Specifications

Panel

• Panel Type - LED-Backlit TFT LCD (IPS Panel)
• Panel Size - 42.0”
• Max. Resolution - 1920 x 1080
• Refresh Rate - 60 Hz
• Pixel Pitch - 0.4833 mm
• Brightness - 400 cd/m2 (Typical)
• Contrast Ratio - 1000 : 1 (Typical)
• Viewing Angle (H/V) - 178°/178°
• Display Colour - 16.7 M
• Response Time (GTG) - 6ms (GTG)

Frequency (H/V)

• H.Freq: 30 kHz - 75 kHz
• V.Freq: 50 Hz - 75Hz

Input

• VGA - 15-Pin D-Sub
• DVI - 24-Pin DVI-D
• S-Video - 4-Pin mini DIN
• Component (YPbPr) - RCA
• HDMI - HDMI x 2
• SDI - BNC
• CVBS - BNC
• DisplayPort - DisplayPort

Output

• VGA - 15-Pin D-Sub
• DVI - 24-Pin DVI-D
• SDI - BNC
• CVBS - BNC

External Control

• RS-232 in/out - 9-Pin D-Sub
• RJ45 - RJ45

Audio

• Audio In - 1 x stereo audio in for PC (audio jack, 3.5 Ø) 1 x stereo audio in (RCA)
• Audio Out - 1 x stereo audio out (RCA)
• Internal Speaker - 12W x 2
• External Speaker Out - 12W x 2

SDI

• 3G-SDI (SMPTE 424M) - 1080p @50/60fps
• HD-SDI (SMPTE 292M) - 720p @25/30/50/60fps 1080p @24/25/30/50/60fps 1080i @50/60fps
• SD-SDI (SMPTE 259M) - 480i @60fps/576i @50fps

Power

• Power Supply - Internal
• Power Requirements - 100 ~ 240V, 50 - 60Hz
• Consumption - < 150W (On), < 0.5W (Stand-by), < 0.5W (Off)

Sync Format

• Video System - NTSC/PAL

Operating Conditions

• Temperature - 0°C ~ 40°C (32°F~104°F)
• Humidity - 10% ~ 80% (No condensation)

Storage Conditions

• Temperature - -20°C ~ 60°C (-4°F ~ 140°F)
• Humidity - 10% ~ 90% (No condensation)

Mounting

• VESA FPMPMI - Yes (400 x 200mm)

Dimensions

• w/o Base (W x H x D) - 980 x 574 x 121mm (38.6” x 22.6” x 4.8”)
• w/o Base Packaging (W x H x D) - 1122 x 723 x 284mm (44.2” x 28.5” x 11.2”)

Weight

• w/o Base - 25.7 kg (56.5 lbs)
• Packaging weight - 29.3 kg (64.5 lbs)

Regulation Approval

• Certifications & Compliance - CE, RoHS, WEEE

Accessories

• Supplied - CD ROM (user manual), 15-Pin D-Sub cable, power cord, remote control, batteries
• Optional - Stand base (STD-03)
