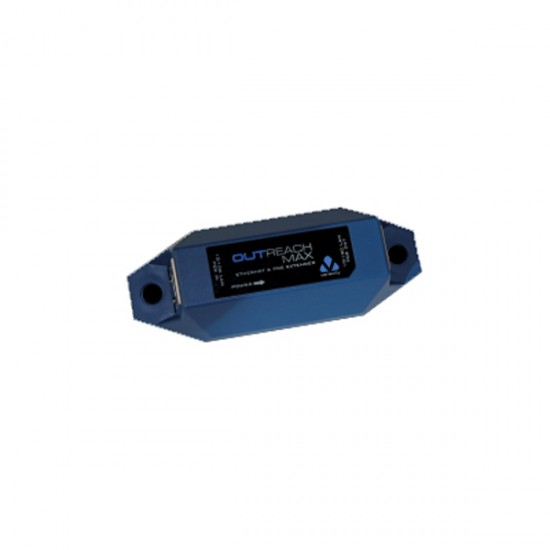

VOR-ORM Veracity Outreach Max Ethernet Extender for PoE and PoE Plus Equipment
- Brand: Veracity
- Model: VOR-ORM
- SKU: VOR-ORM
- MPN: VOR-ORM
$150.00
Specifications:
Device Power: 1.3 Watts
Forwarded PoE power:
- Up to 70 watts depending on standard
- Maximum current 0.7 amps on data pairs
- Maximum current 1.5 amps on spare pairs
PoE standards:
- IEEE 802.3af PoE
- Class 2 powered device
- Custom PoE (incl. “always-on 48V” and “4-pair”)
Ethernet:
- Two independently auto-configuring 10/100 ports
- (10BASE-T/100BASE-TX, half/full duplex)
- Patch or crossover cables supported
Dimensions :
- 105 x 40 x 22 mm (4.13 x 1.57 x 0.87 in) LxWxH
- Weight 45g (1.6oz)
Mounting :
- Two 7mm (0.28in) diameter mounting holes
- Centres 89mm (3.5in) apart
Environmental:
- Operating temperature: -10 to 50C (14 to 122F)
- Humidity up to 85%, non-condensing
