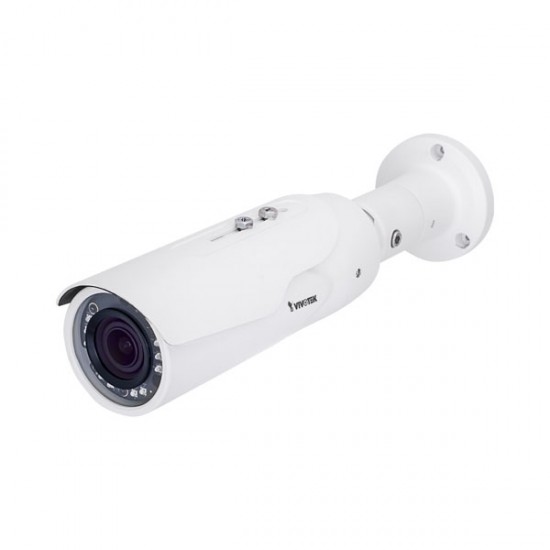

IB8367A Vivotek 2.8-12mm Varifocal 30FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

VIVOTEK’s IB8367A is an all-in-one bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367A is an ideal and highly adaptable outdoor camera capable of capturing high quality video at high resolutions of up to 2 Megapixel even in low light environments. The IB8367A features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensuring maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements. In order to adapt to constantly changing outdoor lighting conditions, the IB8367A also features a removable IR-cut filter as well as IR illuminators effective up to 30M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in a weather-proof IP66-rated housing, making it impervious to rain and dust. The robustness of the IB8367A is further strengthened by the adoption of rugged IK10 design housing.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 256MB

Camera Features

• Image Sensor - 1/2.9" Progressive CMOS
• Maximum Resolution - 1920x1080 (2MP)
• Lens Type - Vari-focal, Manual
• Focal Length - f = 2.8~12mm
• Aperture - F1.4~F2.4
• Auto-iris - DC-iris
• Field of View - 36.2°~100.6° (Horizontal) 20.4° ~54.9° (Vertical) 38.3°~103.1° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Enhanced
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.05 Lux @ F1.4 (Color) 0.01 Lux @ F1.4 (B/W)
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• IR Illuminators - Built-in IR illuminators, effective up to 20 meters with Smart IR IR LED*8
• On-board Storage - MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.264 & MJPEG
• Maximum Frame Rate - 30 fps @ 1920x1080 In both compression modes
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 65 dB
• Dynamic Range - 69.4 dB
• Video Streaming - Adjustable resolution, quality and bitrate Smart Stream II
• Image Settings - Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D noise reduction,video rotation, defog

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 BaseTX Ethernet (RJ-45)
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
• Alarm Events - Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card

General

• Connectors - RJ-45 for Network/PoE connection
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0
• Power Consumption - Max. 10 W
• Dimensions - Ø: 72 mm x 327 mm
• Weight - Net: 1085 g
• Casing - Weather-proof IP66-rated housing Vandal-proof IK10-rated metal housing
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick
• Operating Temperature - Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7/Vista/XP/2000
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
• Other Players - VLC: 1.1.11 or above QuickTime: 7 or above

Included Accessories

• CD - User's manual, quick installation guide, Installation Wizard 2, VAST 32-channel recording software
• Others - Quick installation guide, alignment sticker, screw pack

IB8367A Specifications PDF
