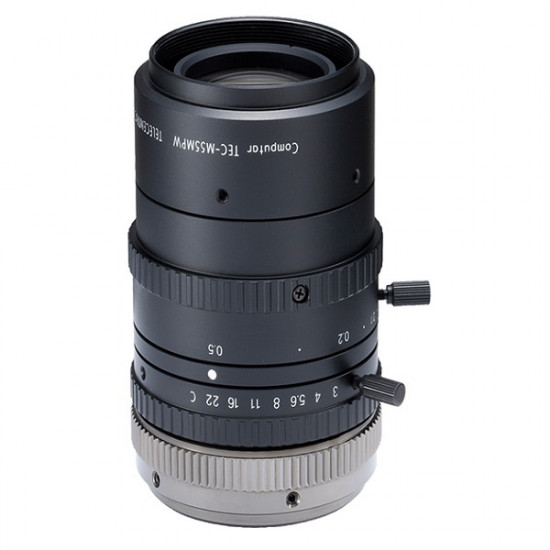

TEC-M55MPW Computar 2/3" C-Mount 55mm 5 Mega-Pixel Telecentric Manual Iris Lens
- Brand: Computar
- Model: TEC-M55MPW
- SKU: TEC-M55MPW
- MPN: TEC-M55MPW
$667.00
Features:
- Compact body design, compatible 5MP sensors
- Optical magnification 0.057x - 0.5x
- Relative illuminance more than 80%
- Low distortion - less than 1%
Specifications
- Model No. - TEC-M55MPW
- Focal Length - 55mm
- Magnification - 0.057X - 0.5X
- Max. Image Format - 8.8mm x 6.6mm( 0 11 mm)
- Operation Range
- Iris - F3.0 - F22C
- Focus - 0.14m - 1m
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D. - 17.4mm(H) x 13.1mm(V) 2 /3 "
- Relative illumination - 94%(at 0.057X) ,81%(at 0.5X)
- Effec tive Lens Aperture
- Front - 030.8mm
- Rear - 010.7mm
- Distortion
- 2/3 type - 0.5% at 0.057X(y=5.5) 0.6% at 0.5X(y=5.5)
- Ba c k Focal Length - 17.0mm
- Flange B a c k Length - 17.526mm
- Mount - C -M o u n t
- F ilte r Size - M46.0 P=0.75mm
- Dimensions - 0 5 9m m x 93.1mm
- Weight - 400g
- Operating Temperature - -1 0 °C - +50°C
