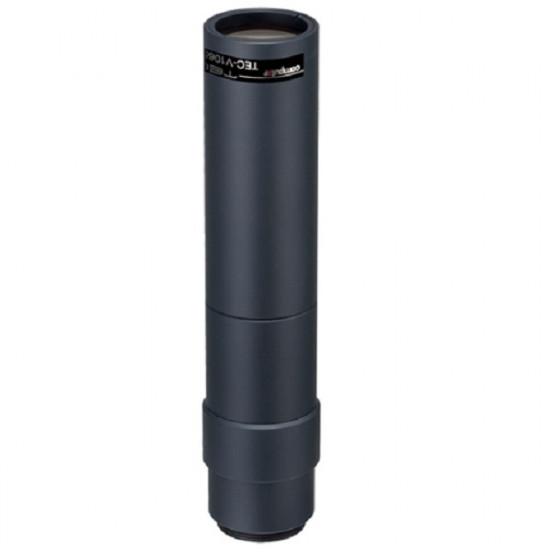

TEC-V1065MPW Computar 1" C-Mount 65.2mm 5 Megapixel Telecentric Lens
- Brand: Computar
- Model: TEC-V1065MPW
- SKU: TEC-V1065MPW
- MPN: TEC-V1065MPW
$732.00
Features:
- Compatible with 5MP sensors on 1 " cameras
- Designed for 65.2mm working distance
- 1.0x magnification
- Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)
Specifications
- Model No. - TEC-V1065MPW
- Magnification - 1.0X
- Working Distance - 65.2mm
- Effective F Number - 9.0
- Max. Image Format - φ16mm
- Field of View - 12.8mm(H) x 9.6mm(V) 1"
- Resolving Power *1 - 6.0μm
- Depth of Field *2 - 0.72mm
- NA - 0.055
- TV Distortion 2/3 type - -0.023%
- Back Focal Length - 17.0mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Dimensions - φ31mm x 143.8mm
- Weight - 158g
- Operating Temperature - -10℃ - +50℃
