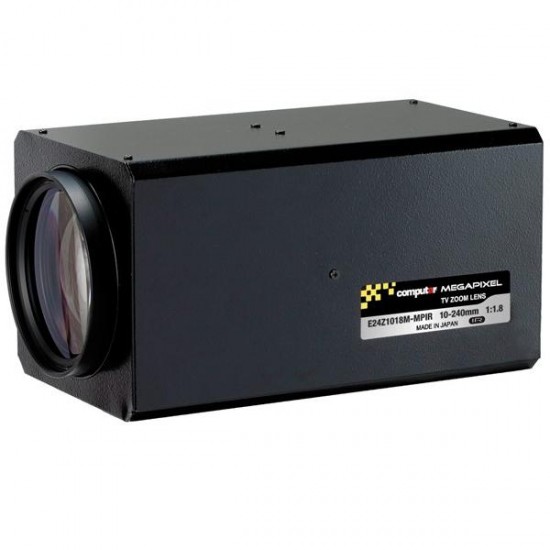

E24Z1018M-MPIR Computar 1/1.8" C-Mount 10-240mm F/1.8 3 Megapixel IR-corrected 3 Motors Auto Iris Zoom Lens
- Brand: Computar
- Model: E24Z1018M-MPIR
- SKU: E24Z1018M-MPIR
- MPN: E24Z1018M-MPIR
$2,345.22
Features:
- 3 Megapixel IR
- 24X Zoom Lens
- 10-240mm
- F1.8
- 3 Motors
Specifications
- Model No. - E24Z1018M-MPIR
- Focal Length - 10mm - 240mm
- Max. Aperture Ratio - 01:01.8
- Max. Image Circle - φ8.9mm
- Operation Range
- Iris - F1.8 - F22C
- Focus - 4m - lnf.
- Zoom - 10mm - 240mm
- Control
- Iris - Motorized
- Focus - Motorized
- Zoom - Motorized
- Angle of View
- 1/1.8 type (4:3)
- D - 48.5°- 2.2°
- H - 39.0°- 1.7°
- V - 29.5°- 1.3°
- 1/2 type (4:3)
- D - 43.7°- 1.9°
- H - 35.2°- 1.6°
- V - 26.5°- 1.2°
- 1/3 type (4:3)
- D - 33.0°- 1.5°
- H - 26.5°- 1.2°
- V - 20.0°- 0.9°
- 1/1.8 type (4:3)
- Effective Lens Aperture
- Front - φ66mm
- Rear - φ13mm
- Back Focal Length - 14.1mm
- Flange Back Length - 17.526mm
- Mount - C-Mount
- Filter Size - M77 P=1mm
- Tripod Screw - 1/4 -20UNC
- Dimensions - W101mm x H102.4mm x D198.2mm
- Weight - 2160g
- Supply Voltage
- Iris - DC6V
- Focus - DC6V
- Zoom - DC6V
- Current
- Iris - 90mA or less
- Focus - 90mA or less
- Zoom - 90mA or less
- Response Time
- Iris - Approx. 4.5 sec.
- Focus - Approx. 6.5 sec.
- Zoom - Approx. 6.5 sec.
- Operating Temperature - -10º - +50º
