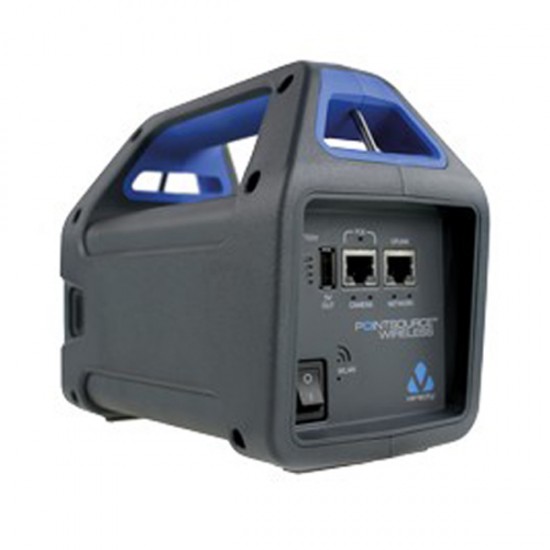

VAD-PSW Veracity Pointsource Wireless

POINTSOURCE Wireless is a battery-powered POE injector, with a wireless network link, designed to allow simple and efficient IP camera installation with live video to smartphones, tablets and laptops.

Features

• Allows local viewing of IP camera video wirelessly on smart devices
• Enables rapid and precise adjustment of camera alignment, focus and field of view
• Removable, rechargeable battery with sufficient power for a day's installation work
• Additional spare batteries available as an option for rapid swap over
• Supports all classes of 802.3af and 802.3at POE devices
• Includes convenient USB charging point for tablets and smart phones

Specifications

Power

• POE output - 48V DC, IEEE 802.3af/at compliant (POE, POE+, up to 30W)
• USB charging port - 5V, 2.1A, power only, no data
• Battery type - Maintenance-free, sealed lead-acid battery, 12V, 3.4Ah
• Discharge time - 6 hours continuous for a 5 watt camera (typical)
• Charger - Three-stage intelligent (14.4V / 1A / 13.8V float)

Network

• Wired network interface
• “Camera” port: 10BaseT/100BaseT with POE
• “Network” port: 10BaseT/100BaseT data only
• IP setting - Automatic or manual configuration of IP address (IPv4)
• Wireless network interface
• IEEE 802.11b/g/n/ac
• 2.4GHz b/g/n (default) – channels 1, 6 or 11
• 5GHz a/ac/n – channels 36, 40 or 44
• Wireless SSID - User configurable
• Wireless security - WPA2-PSK with user configurable password

LED Indicators & CONNECTORS

• POE status indicator - Red LED shows ON, flash indicates error, off indicates no POE
• Battery status indicator - Green four-bar display indicates charge level: 100% - 75% - 50% - 25%
• Network port LEDs - Green: Link speed Orange: Network activity
• Wireless indicator - Blue LED ON shows wireless link on; flash indicates booting up
• Network connectors - 2 x RJ45, one with POE
• USB connector - 1 x USB Type A (power only)
• Charging connector - 2.1mm jack, centre positive (on battery module – remove to charge)

Compatablity

• Camera discovery - Automatic camera discovery using Bonjour or WS-Discovery (ONVIF)
• Supported IP cameras - All IP cameras supporting live-viewing via browser on smart device or with RTSP url address

Physical / Environmental

• Dimensions - L 205mm W 100mm H 150mm ( 5 5/16 x 3 15/16 x 8 1/16 in)
• Weight - Unit including battery module: 2.2kg (4.8lb) Battery module: 1.6kg (3.5lb)
• Operating temperature - 0°C to 50°C (32°F to 122°F)
• Storage temperature - - 30°C to 70°C (- 22°F to 158°F)
• Battery charging temperature - 0°C to 35°C (32°F to 95°F)
• Relative humidity - 20% to 85%, non-condensing

Compliance

• Main unit - EN 55022 Class B, FCC Part 15 Subpart B Class A + B, ICES-003 Class B,VCCI Class B, C-tick S/NZS CISPR 22 Class B, IEC/EN/UL 60950-1, CE, RoHS,REACH, WEEE
• Battery - UL, IMDG, IATA (non-restricted, OK to transport by air), CE, RoHS, REACH Exempt, WEEE, ADR, ECHA, DoT
• Warrenty - Veracity 2-year warranty
