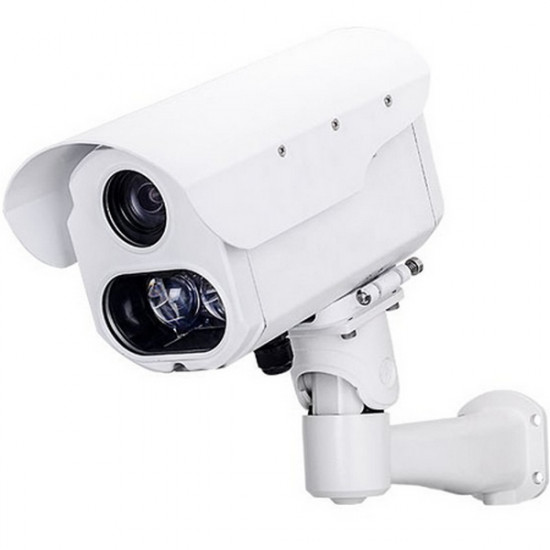

IZ9361-EH Vivotek 4.7-94mm Varifocal 60FPS @ 1920x1080 Outdoor IR Day/Night WDR Bullet IP Security Camera 24VAC/PoE

VIVOTEK IZ9361-EH is a H.265 outdoor-ready network camera with 150m IR illuminators and a 20x optical zoom lens, providing a superb low light image for the most challenging situations. By adopting VIVOTEK's latest IR technology, VAIR (Vari-Angle IR), allows IZ9361-EH to automatically adjust the IR angle to the optical zoom delivering consistent IR images in all fields of view. The IZ9361-EH also features VIVOTEK's sophisticated Smart Stream II technology. This enables it to optimize quality for desired regions, therefore maximizing bandwidth efficiency.By combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can obtain bandwidth savings of up to 80%* compared to traditional H.264 systems. Additionally, in order to ensure full protection against both harsh environments and acts of vandalism, the IZ9361-EH is specifically designed with an IP67-, NEMA 4X- and IK10-rated housing, with a wide temperature range from -50°C to 60°C making it suitable for all outdoor surveillance apZlications such as highway traffic monitoring, city surveillance, and harbor patrol.

Technical Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/3" Progressive CMOS
• Maximum Resolution - 1920x1080
• Lens Type - 20x Optical Zoom, Auto Focus
• Focal Length - f= 4.7 ~ 94 mm
• Aperture - F1.6 ~ F3.5
• Auto-iris - DC-iris
• Field of View - 2.9°~55.4° (Horizontal) 1.6°~32.6° (Vertical) 3.3°~62.7° (Diagonal)
• Shutter Time - 1/8 sec. to 1/30,000 sec.
• WDR Technology - WDR Pro
• ay/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.26 Lux@ F1.6 (Color) 0.01 Lux @ F1.6 (B/W)
• Pan/Tilt/Zoom Functionalities - 128x digital zoom (4x on IE plug-in, 32x buZXlt-in)
• IR Illuminators - 150m
• On-board Storage - SD/SDHC/SDXC card slot

Video

• Compression - H.265 & H.264 & MJPEG
• Maximum Frame Rate - H.265 & H.264: 60 fps @ 1920x1080 MJPEG: 30 fps @ 1920x1080
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - Above 53dB
• Dynamic Range - 110dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control Smart Stream II
• Image Settings - Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, EIS, 3DNR, defog, HLC, video rotation

Audio

• Audio Capability - Audio input / Audio output (Full duplex)
• Compression - G.711, G.726
• Interface - External microphone input External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4,IPv6,TCP/IP,HTTP,TTPS,UPnP,RTSP/RTP/TCP,IGMP,SMTP,FTP,DHCP,NTP,DNS,DDNS,PPPoE,CoS,QoS,SNMP,802.1X,UDP,ICMP,ARP,SSL,TLS,NTCIP
• Interface - 10 Base-T/100 BaseTX/1000BaseTXEthernet (RJ45)*It is highly recommended to use standardCAT5e & CAT6 cables which are compliantwith the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• VCA - Yes

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP , NAS server and SD card

General

• Connectors - RJ45 connector for Network/PoE connection Audio input Audio output AC24V/DC24V power input Digital input*3 Digital output*1 RS485
• LED Indicator - System power and status indicator
• Power Input - 60W UPoE DC 24V AC 24V
• Power Consumption - Max. 48W (Heater on) Max. 18W (Heater off)
• Dimensions - 147 x 375 x 322 mm
• Weight - 4.3 kg
• Casing - Weather-proof IP67- and NEMA 4X-rated housing Vandal-proof IK10-rated housing (camera body only)
• Safety Certifications - CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature - Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7/Vista/XP/2000
• Web Browser - Mozilla Firefox 7~10 (streaming only) Internet Explorer 7/8/9/10/11
• Other Players - VLC: 1.1.11 or above Quicktime: 7 or above

Included Accessories

• CD - User's manual, quick installation guide, Installation Wizard 2, VAST
• Others - Wall mount bracket, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags, I/O combo cable

IZ9361-EH Specifications PDF
