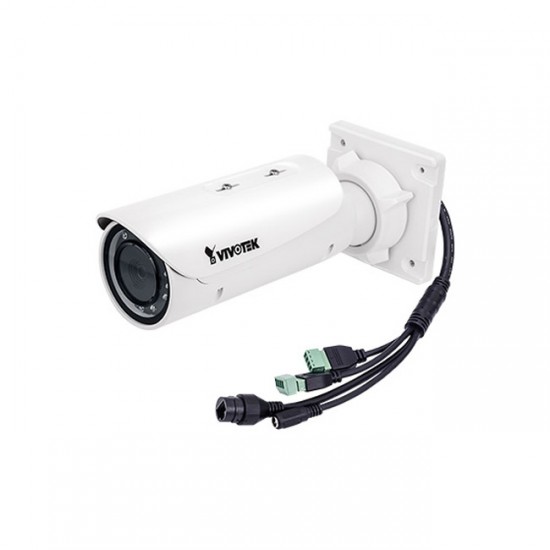

IB9381-HT Vivotek 4~9mm Varifocal 30FPS @ 2560 x 1920 Outdoor IR Day/Night Bullet IP Security Camera 12VDC/PoE

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/1.8" Progressive CMOS
• Maximum Resolutiono - 2560x1920 (5MP)
• Lens Type - Vari-Focal
• Focal Length - f = 4 ~ 9 mm
• Aperture - F1.3 ~ F2.2
• Auto-iris - P-Iris
• Field of View - 45° ~ 84° (Horizontal) 34° ~ 62° (Vertical) 64° ~ 113° (Diagonal)
• Shutter Time - 1/5 sec. to 1/16000 sec.
• WDR Technology - WDR Pro
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.04 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W)
• Pan/tilt/zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators - 30 meters
• On-board Storage - Slot type: SD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H265 & H264 & MJPEG
• Maximum Frame Rate - H.265 & H.264: 30 fps @ 2560x1920 60 fps @ 1920x1080 MJPEG: 12 fps @ 2560x1920 30 fps @ 1920x1080
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 57 dB
• Dynamic Range - 100 dB
• Video Streaming - Adjustable resolution, quality and bitrate Smart Stream II
• Image Settings - Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3DNR, video rotation, defog

Audio

• Audio Capability - Two-Way Audio (full duplex)
• Compression - G711, G726
• Interface - External microphone input Audio output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Supported

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• VCA* - Line crossing detection, field detection, loitering detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card

General

• Smart Focus System - Remote Focus
• Connectors - RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1
• LED Indicator - System power and status indicator
• Power Input - 12V DC IEEE 802.3af/at PoE Class 0
• Power Consumption - 12.7 W
• Dimensions - Ø 88 x 293 mm
• Weight - 1182 g
• Casing - Weather-proof IP66-rated housing Vandal-proof IK10-rated metal housing
• Safety Certifications - CE, LVD, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature - Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7/Vista/XP/2000
• Web Browser - Mozilla Firefox 7~10 (streaming only) Internet Explorer 7/8/9/10/11
• Other Players - VLC: 1.1.11 or above Quicktime: 7 or above

Included Accessories

• CD - User's manual, quick installation guide, Installation Wizard 2, VAST
• Others - Quick installation guide, sun shield, alignment sticker, desiccant bag, waterproof connector, screw pack, CD

IB9381-HT Specifications PDF
