- Brand: Vivotek
- Model: AW-GEV-184B-250
- SKU: AW-GEV-184B-250
- MPN: AW-GEV-184B-250

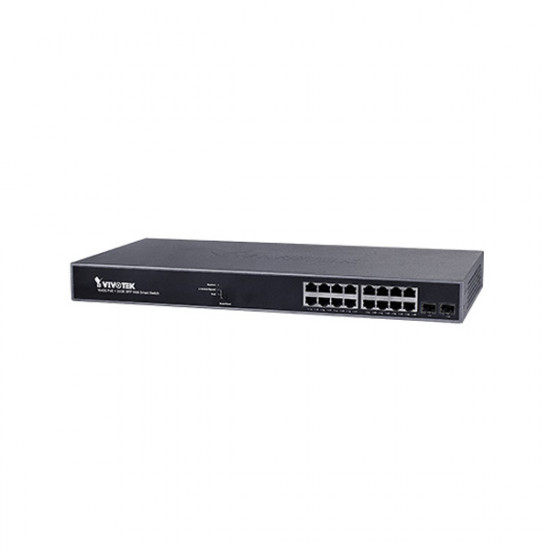

The AW-GEV Web Smart series is a VivoCam web smart managed PoE switch, combining powerful web smart managed features with graphic view functions, providing better functionality and usability. With single AW-GEV Web Smart series allows users to find all network devices and deploy a network system automatically. The AW-GEV Web Smart series also provides high performance HW and environmental flexibility for SMBs and Enterprises. In addition, embedded NetworkView features Graphic Views, such as Topology View/ Floor View/Map View for controlling and understanding network structure and device status, as well as Google Map integration to view system status for outdoor applications. The device status and traffic monitoring functions also help users clarify and troubleshoot any connection or device issues. The AW-GEV Web Smart series is ideal for delivering management simplicity, better user experience, and lowering total cost of ownership.
Specifications
Port Configuration
- 10M/100M/1G RJ45 Port - 16
- 100M/1G SFP Port - 2
- Total Ports - 18
HW Performance
- Switching Bandwidth - 36Gbps
- Buffer Memory - 4.1Mb
- MAC Address - 8K
- Jumbo Frames - 9216 Bytes
HW Performance
- Switching Bandwidth - 36Gbps
- Buffer Memory - 4.1Mb
- MAC Address - 8K
- Jumbo Frames - 9216 Bytes
Web Smart Managed Features
- VLAN - 4096 VLAN IDs
QoS Features
- Hardware Queues - 8
PoE Function
- Number of PoE Output Port - 16
- PoE output Power - Per Port 54VDC, Max. 30W
- Totoal PoE Power Budget - 250W
- PoE Pin Assignment - 1/2(+), 3/6(-)
Environmental Specifications
- Operating Temperature - 32°F ~ 122°F
- Storage Temperature - -4°F ~ 158°F
- Operating Humidity - 10 ~ 90% RH
Mechanical Specifications
- Dimensions-17.4" (W) x 1.73" (H) x 8.3" (D) mm
- Storage Temperature - -4°F ~ 158°F
- Weight-6.6 lbs
Power Source
- AC Input - 100V ~ 240V
- Frequency - 50 ~ 60 Hz
Certifications
- Certifications - CE, FCC, LVD, VCCI, C-Tick
Accessories
- Included Accessories - Power Cord, QIG, CD Manual, Rack Mount Kit
