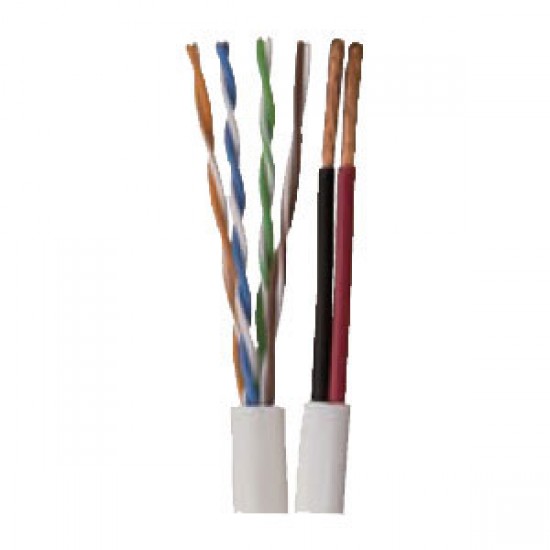

97394-06-01 Southwire 18 AWG 2 Conductor 4 Pair Unshielded Twisted Pairs (UTP) Solid Bare Copper CMR/CL3R Cat5e Non-Plenum CCTV Cable - 1000' Reel - White

97394-06-01 Southwire 18 AWG 2 Conductor 4 Pair Unshielded Twisted Pairs (UTP) Solid Bare Copper CMR/CL3R Cat5e Non-Plenum CCTV Cable - 1000' Reel - White
97394-06-01 Southwire 18 AWG 2 Conductor 4 Pair Unshielded Twisted Pairs (UTP) Solid Bare Copper CMR/CL3R Cat5e Non-Plenum CCTV Cable - 1000' Reel - White
  • Brand: Coleman Cable
  • Model: 97394-06-01
  • SKU: 97394-06-01
  • MPN: 97394-06-01
Based on 0 reviews. - Write a review
$539.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Features:

  • Supports digital CCTV Technology
  • Enables signals over longer distances
  • Supports power/PTZ video or power/2 videos
  • Available in Round or Parallel Constructions

Applications:

  • Send both power and video over a single UTP cable.

Specifications:

  • Part Number - 97394-06-01
  • Approvals - ETL Listed as CMR/CL3R, CMG/FT4
  • Application - Digital Communication & Power Limited Cable Applications
  • Conductor (18 AWG 2/C) - 18 AWG Bare Copper
  • Stranding - 16/30
  • Insulation - PVC
  • Insulation Thickness - 0.009" Nom.
  • Conductor Thickness - 0.064" Nom.
  • Lay Length - Parallel
  • Conductor (CAT5E, 24 AWG 4/PAIR) - 24 AWG Bare Copper
  • Stranding - Solid
  • Dielectric - Solid PE
  • Dielectric Thickness - 0.008" Nom.
  • Conductor Diameter - 0.036" Nom.
  • Overall Jacket Material - PVC
  • Overall Jacket Thickness - 0.022" Nom.
  • Overall Cable Diameter - 0.172" / 0.203" x 0.375" Nom.
  • Approximate Cable Weight - 41.4 Lbs/1M' Nom.
  • Flame Rating - UL 1666 Riser Flame Test
