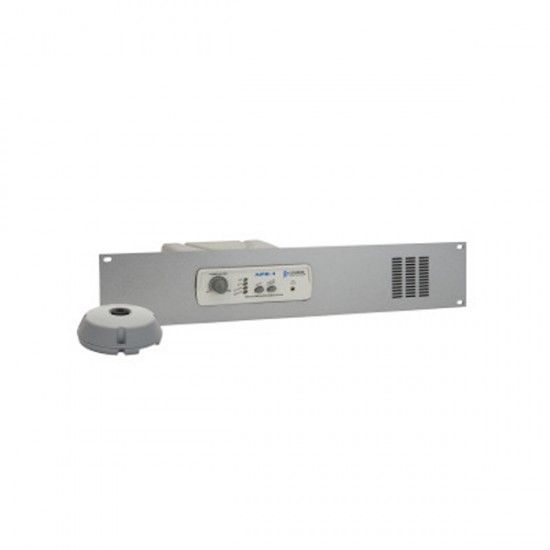

LE-018 Louroe ASK-4 #101RM Single Zone Base stationw/Verifact A Microphone/Rack Mounted
- Brand: Louroe
- Model: LE-018
- SKU: LE-018
- MPN: LE-018
$543.81
- Product Name: ASK-4 #101RM
- Kit Includes: (1) APR-1 and (1) Verifact A
APR-1:
- Durable, high impact ABS housing mounted in 2RU powder coated steel faceplate
- Line level audio output (RCA) to DVR
- Base station with 3” speaker for monitoring live audio and playback from a DVR
- 3.5 mm headphone jack for private listening
Verifact A:
- Omni-directional, within 30′ diameter circle
- High impact anti static ABS microphone housing
- Can be placed up to 1000′ away from the base station
The ASK-4® #101RM is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The rack mounted APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® A microphone is designed for ceiling mount applications.
Dimensions:
- Microphone - 4″ Diag. x 1.5″ H
- Base Station - 19” L x 3.5” W x8.25” D
Specifications
- Type - Electret Condenser
- Frequency response - 40 Hz to 15 kHz ± 1 dB
- Current drain - 10 mA
- Output - Line Level (0 dBV, 600W @ 1 kHz)
- Supply voltage - 12Vdc
- Dimensions - 4"Dia x 1 ½"H
- Monitor output power - 1W@8
- Audio input impedance - 10K
- Audio line output impedance - 600W or higher
- Freq. response - 100 Hz to 10 kHz
- Headphone impedance - 8 to 600
- Universal power supply - 12 Vdc, 500 mA
- Dimensions - 19"L x 3 1/2”W x 8 1/4"D
- Weight - 2 lb 6 oz
- Weight (shipping) of kit - 4 lbs
