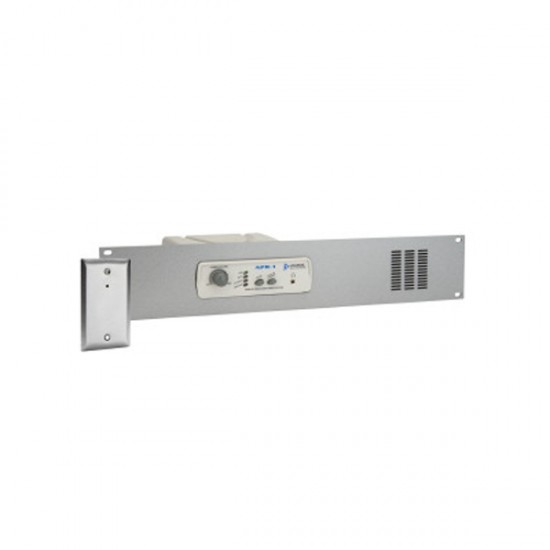

LE-019 Louroe ASK-4 #102-RM Single Zone Base Station w/Verifact D Microphone/Rack Mounted
- Brand: Louroe
- Model: LE-019
- SKU: LE-019
- MPN: LE-019
$508.56
- Product Name: ASK-4 #102
- Kit Includes: (1) APR-1 and (1) Verifact A
APR-1:
- Durable, high impact ABS housing mounted in 2U powder coated steel faceplate
- Line level audio output (RCA) to DVR
- Base station with 3” speaker for monitoring live audio and playback from a DVR
- 3.5 mm headphone jack for private listening
Verifact A:
- Omni-directional, within 30′ diameter circle
- Stainless steel, single gang faceplate
- Can be placed up to 1000′ away from the base station
The ASK-4 #102-RM is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The rack mounted APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® D microphone is is designed for wall mount.
Dimensions:
- Microphone - 2.75″ W x 4.5″ H
- Base Station - 8.25” L x 5.75” W x 1.375” H
Specifications
- Type - Electret Condenser
- Output - Line Level (0 dBV, 600W @ 1 kHz)
- Frequency response - 40 Hz to 15 kHz ± 1 dB
- Current drain - 10 mA
- Supply voltage - 12Vdc
- Dimensions(face plate) - 2¾”W x 4½”H
- Monitor output power - 1W@8
- Audio output impedance - 600W @ 1kHz
- Audio input impedance - 10K
- Freq. response - 100 Hz to 10 kHz
- Headphone impedance - 8 to 600
- Power supply - 12 Vdc, 500 mA
- Dimensions - 8 ¼"L x 5 ¾”W x 1 3/8" H
- Weight - 2 lb 6 oz
- Shipping Weight of kit - 4 lbs
