LE-047 Louroe ASK-4 #300 Interfaces with DVR's, IP Network Cameras Video Servers

• Product Name: ASK-4 #104

• Kit Includes: (1) APR-1 and (1) Verifact A

APR-1:

• Line level audio output (RCA) to DVR
• Base station with 3” speaker for monitoring live audio and playback from a DVR
• Durable, high impact ABS housing
• 3.5 mm headphone jack for private listening
•


Verifact A:

• Omni-directional, within 30′ diameter circle
• Durable, high impact ABS housing
• Can be placed up to 1000′ away from the base station and is connected with 22/2 shielded cable

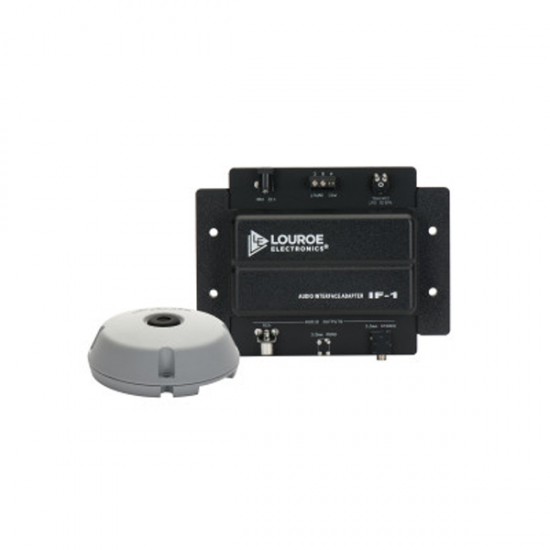

The ASK-4 #300 is a single zone audio monitoring system designed ideally for connection to IP cameras or DVRs. When ceiling mounted, a Verifact A microphone can pick up sounds within a 30′ diameter circle. The model IF-1 interface adapter connects to the microphone, supplies power to the microphone and drives audio into the input of the recording device.

Dimensions:

• Microphone - 4″ Diag. x 1.5″ H
• Base Station - 6.125” L x 4.625″ W x 1.25” H

Specifications

• Input impedance - 17.5 KW @ 1kHz
• Output impedancel - 600W @1kHz
• Power supply - 12Vdc, 500 mA
• Dimensions - 6 1/8”L x 4 5/8”W x 1 3/8”H
• Audio output gain - up to +10dB
• Weight - 5.5 oz
• Type - Electret Condenser
• Output - Line Level (0 dB 600W @ 1 kHZ)
• Frequency response - 50 Hz to 15 kHz ± 1 dB
• Current drain - 10 mA
• Supply voltage - 12Vdc
• Dimensions - 4"Dia x 1 ½"H
• Weight - 3.5 oz
• Shipping Weight of kit - 2 lbs
