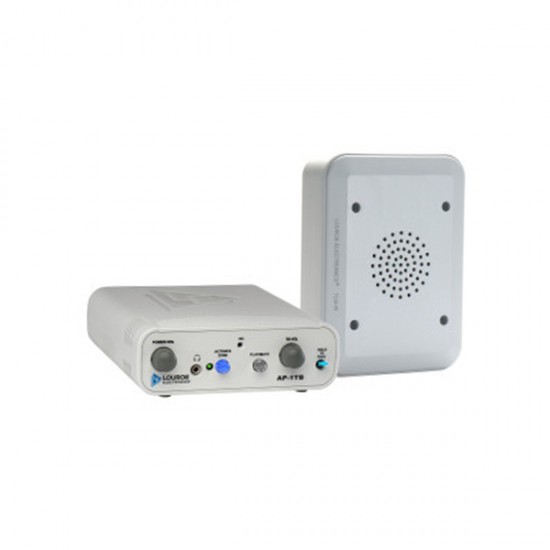

LE-025 Louroe ASK-4 #501 Single Zone, Bi-directional, w/ TLM-W

• Product Name: ASK-4 #501

• Kit Includes: (1) AP-1TB and (1) TLM-W

AP-1TB:

• Desktop base station with built-in microphone and speaker
• Line Level input/output (RCA jacks)to DVR for recording and playback
• Volume control for both listen and talkback

TLM-W:

• Microphone and speaker mounted within ABS enclosure
• Omni-directional microphone, within 30′ diameter

The ASK-4 #501 is a single zone audio monitoring system for two-way audio. The TLM-W remote unit contains a Verifact line level microphone and a speaker, all within one housing.The AP1-TB desktop base unit produces live audio and playback functions. Talk from the base unit to remote speaker/microphone is engaged by toggling the “hold to talk” switch and speakinginto the built-in microphone. A person at the remote speaker/ microphone can listen and talk hands-free.

Dimensions:

• Base Station - 8.25″‘ L x 5.75” W x 1.375’ H
• Faceplate -6.8″ L x 5.12″ W x 0.5″ D
• Backbox - 6.92″ L x 5.12″ W x 1.62″ D

Specifications

• Output of microphone (Mic) - Line Level (0 dB, 600W @ 1KW
• Frequency Response (Mic) - 50 Hz to 15 kHz
• Current Drain (mic) - 10 mA
• Speaker - 2 1/2”, 7W w/ 70V transformer
• Faceplate - 6.8”L x 5.12”W x 0.5”D
• Backbox - 6.92”L x 5.12”W x 1.62”D
• Weight - 13 oz
• Input sensitivity - -45 dB
• Monitor power output - 1W @ 8W
• Talkback power output - 1W into 70V Line
• Audio input impedance - 10kW
• Audio frequency response - 100 Hz to 10kHz
• Headphone impedance - 8W to 600W
• Power input - 12 Vdc, 500mA
• Dimensions - 7.9”L x 6.6”W x 2.4”H
• Weight - 2 lbs 3 oz
• Shipping Weight of kit - 6 lbs
