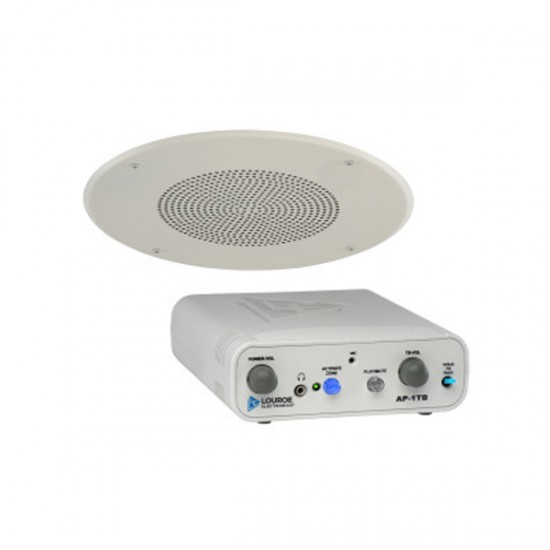

LE-371 Louroe ASK-4 #501 TLI-CF Single Zone Bi-directional w/ TLI-CF

• Product Name: ASK-4 #501 TLI-CF

• Kit Includes: (1) AP-1TB and (1) TLI-CF

AP-1TB:

• Desktop base station with built-in microphone and speaker
• Line Level input/output (RCA jacks)to DVR for recording and playback
• Volume control for both listen and talkback

TLI-CF:

• Microphone and speaker mounted within ABS enclosure
• Omni-directional microphone, within 30′ diameter

The ASK-4 #501 TLI-CF is a single zone audio monitoring system with two-way listen and talkback. Remote flush celing mounted unit contains a microphone and a speaker. Desktop base unit produces live audio and playback. Talkback from base unit to remote speaker/microphone is actuated by engaging the “push to talk” switch and speaking into the built-in microphone. Person at the remote speaker/microphone can listen and talk hands-free. Input/output to DVR/CCTV for recording and audio playback. Includes back box for flush mounting.

Dimensions:

• Base Station - 8.25″‘ L x 5.75” W x 1.375’ H
• Faceplate - 12.875″ Diag. x 2.75″ D

Specifications

• Output of microphone (Mic) - Line Level (0 dB, 600W @ 1KW
• Frequency Response (Mic) - 50 Hz to 15 kHz
• Current Drain (mic) - 10 mA
• Speaker - 8”, 20W w/ 70V transformer
• Faceplate - 12 7/8” Dia x 2 3/4” D
• Mounting ring - 12 3/8” Dia x 4” D
• Weight - 4 lbs 8.5 oz
• Input sensitivity - -45 dB
• Monitor power output - 1W @ 8W
• Talkback power output - 1W into 70V Line
• Audio input impedance - 10kW
• Audio frequency response - 100 Hz to 10kHz
• Headphone impedance - 8W to 600W
• Power input - 12 Vdc, 500mA
• Dimensions - 7.9”L x 6.6”W x 2.4”H
• Weight - 2 lbs 3 oz
• Shipping Weight of kit - 9 lbs

LE-371 Specifications PDF
