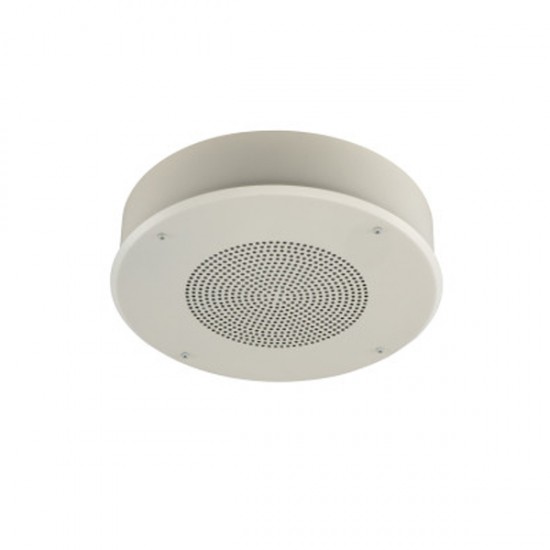

LE-114 Louroe AOP-SP-CS Speakerphone Ceiling Mount Surface

• Product Name: TLMC-W

• Speaker microphone for IP cameras
• Designed for ceiling surface mount
• Omni-directional microphone, within 30′ diameter
• 4″ Speaker w/ 1 W Amplifier
• Line level input & output

AOP-SP-CS is a speaker microphone. It is a surface ceiling mount speakerphone designed to interface with various modes of audio/video transmission systems (DVR, IP camera, encoder). There is a control potentiometer for adjusting the sensitivity of both transmitted and received audio. It includes models BR-4WS grill baffle and MR-4 ring. For flush ceiling, request model AOP-SP-CF.

Dimensions

• Grill - 12.875″ Diag
• Backbox - 12.375″ Diag. x 3″ H

Specifications

• Type - Electret Condenser
• Audio output - Line level (0 dB @ 600W) unbalanced
• Microphone element sensitivity - 45 dB
• Frequency response - 40 Hz - 15 kHz
• Audio Input Impedance - 600W
• Speaker power output - 1W
• Speaker impedance - 8W
• Speaker magnet - 1.73 oz ceramic
• Speaker size - 4” (102mm)
• Current Drain - 200mA
• Supply Voltage - 12Vdc
• AOP-SP - CF/CS (grill) - 12 7/8”
• ERD-8 (Backbox for AOP-SP-CF) - 12 1/4” Dia x 4” D
• MR-8 (Mounting ring for AOP-SP-CS) - 12 3/8” Dia x 3” D
• Weight (AOP-SP-CS) - 2 Lbs 12 oz
• Weight (AOP-SP-CF) - 2 Lbs 12 oz
• Weight, (AOP-SP-CS) with MR-8 5 - 5 Lbs (2.3 Kg)
• AOP-SP-CF Shipping Weight - 7 lbs
• AOP-SP-CS Shipping Weight - 7 lbs

LE-114 Specifications PDF
