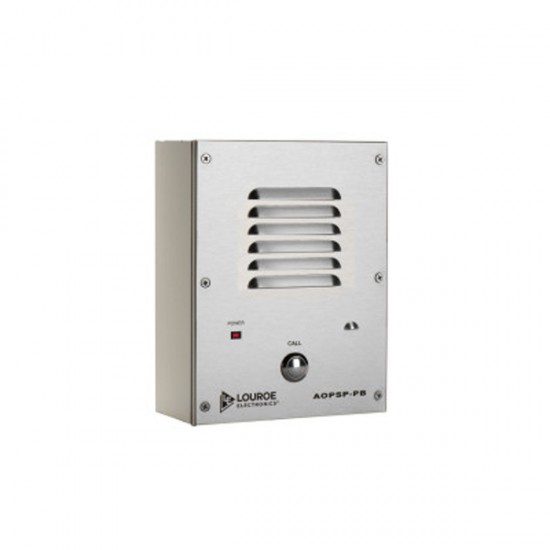

LE-128 Louroe AOP-SP-PB Speakerphone with Pushbutton Flush or Surface
- Brand: Louroe
- Model: LE-128
- SKU: LE-128
- MPN: LE-128
$387.00
- Product Name: AOP-SP-PB
- Speaker microphone for IP cameras
- Designed for ceiling surface mount
- Omni-directional microphone, within 30′ diameter
- 4″ Speaker w/ 1 W Amplifier
- Line level input & output
AOP-SP-PB is a speaker/microphone. It is designed to interface with various modes of audio/video transmission systems. It provides bi-directional audio with the receiving source (DVR, PC soundcard, IP Network cameras with audio, and video servers with audio). It is vandal resistant and weatherized for outdoors application call button. It includes also a 1″ call button for switch closure activation..
Dimensions
- Faceplate - 8″ H x 6.25″ W
- Backbox: - 8″ H x 6.25″ W x 2.75 D
Specifications
- Type - Electret Condenser
- Audio output - Line level (0 dB @ 600W) unbalanced
- Microphone element sensitivity - 45 dB
- Frequency response - 40 Hz - 15 kHz
- Audio Input Impedance - 600W
- Speaker power output - 1W
- Speaker impedance - 8W
- Speaker magnet - 1.73 oz ceramic
- Speaker size - 4” (102mm)
- Current Drain - 200mA
- Supply Voltage - 12Vdc
- Dimensions
- Faceplate - 8" H x 6 1/4" W
- Metal Backbox - 8" H x 6 1/4" W x 23/4" D
- Plastic Backbox - 8" H x 6 1/4" W x 2 5/8" D
- Weight - 1 lb 6 oz
- Shipping Weight - 6 lbs
