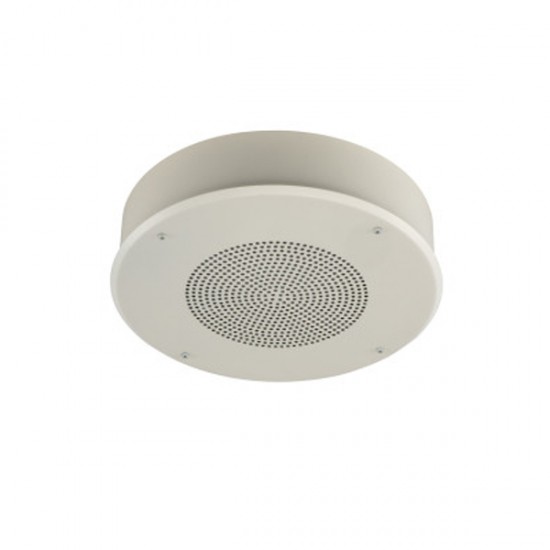

LE-027 Louroe TLM-CS Bi-Directional Speaker Microphone Ceiling Surface Mount
- Brand: Louroe
- Model: LE-027
- SKU: LE-027
- MPN: LE-027
$237.86
- Product Name: TLM-CS
- Easily mounts to ceiling surface
- Microphone and speaker mounted on an aluminium grill with mounting ring
- Omni-directional microphone, within 30′ diameter
- 4″ Speaker w/ 1 W Amplifier
- Line level input & output
TLM-CS is a speaker microphone. As part of a Louroe audio monitoring system, it provides hands-free two-way communication between the remote area and the Louroe audio base station. TLM-CS is designed for surface mounting to a ceiling. It includes the BR-4WS grill baffle and MR-4 mounting ring. For flush ceiling, request models TLI-CF or TLI-VR-F
Dimensions
- Faceplate - 7.875″ Diag. x 2.75″ D
- Mounting Assembly - 7.375″ Diag. x 3″ D
Specifications
- Sensitivity - 45 dBV/Pa 1 Pa = 94 dB SPL
- Frequency Response - 50 Hz to 15 kHzOutput - - Line Level (0 dBV, 600W @ 1kHz)
- Current Drain - 10mA
- Supply Voltage - 12 Vdc
- Power rating - 7W
- Input - - 70.7V constant
- Frequency response - 30 Hz to 20 kHz
- Voice coil impedance - 8
- Speaker size - 4”
- BR-4 Grill with speaker and mic - 7 5/8” Dia x 2 3/4”D
- MR-4 Mounting Ring - 7 3/8 ”Dia x 3” H
- Weight - 1 lb 8 oz
- Shipping Weight - 4 lbs
