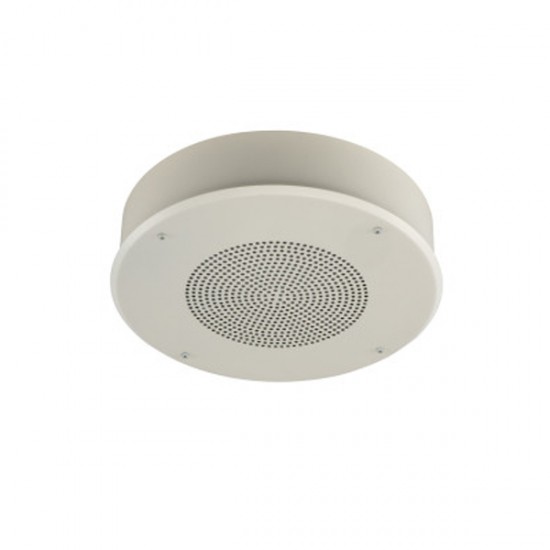

LE-216 Louroe TLI-VR-F Bi-Directional Microphone With Ceiling Flush Speaker Grill Plate / Vandal Resistant

• Product Name: TLI-VR-F

• Easily mounts to ceiling surface
• Microphone and speaker mounted on an aluminium grill with mounting ring
• Omni-directional microphone, within 30′ diameter
• 8″ Speaker w/ 15 W Powe handling
• Line Level Output (0dBV) from Microphone

TLI-VR-F is a speaker microphone. As part of a Louroe audio monitoring system, the TLI provides two-way communication between the remote area and the Louroe audio base station.The TLI-CF is for flush mounting to a ceiling. It includes model BR-8WS grill baffle and mounting ring MR-8. For surface mounting request Model TLI-CS.

Dimensions

• Faceplate - 12.875″ Diag x 2.75″ D
• Mounting Assembly - 12.375″ Diag. x 3″ D

Specifications

• Sensitivity - 45 dBV/Pa 1 Pa = 94 dB SPL
• Frequency Response - 50 Hz to 15 kHzOutput - - Line Level (0 dBV, 600W @ 1kHz)
• Current Drain - 10mA
• Supply Voltage - 12 Vdc
• Power rating - 7W
• Input - - 70.7V constant
• Frequency response - 65 Hz to 17 kHz
• Voice coil impedance - 8
• Speaker size - 8”
• TLI (No housing) - 8” Dia x 2 5/8” D
• TLI-CS/TLI-CF/TLI-VR-F Faceplate with Speaker and microphone - 12 7/8” Dia x 2 3/4” D
• ERD-8 (Backbox for TLI-CF) - 12 1/4” Dia x 4” D
• MR-8 (Mounting ring for TLI-CS) - 12 3/8” Dia x 3” D
• TLI-VR-SQ - 13” H x 11” W x 4” D
• TLI (No housing) Weight - 1 lb 11 oz
• Shipping Weight - 4 lbs
• TLI-CS Weight - 2 lbs 10 oz
• TLI-CS Shipping Weight - 7 lbs
• TLI-CF Weight - 2 lbs
• TLI-CF Shipping Weight - 6 lbs
• TLI-VR-F Weight - 3 lbs x 10 oz
• TLI-VR-F Shipping Weight - 8 lbs
• TLI-VR-SQ Weight - 5 lbs 14 oz
• TLI-VR-SQ Shipping Weight - 10 lbs

LE-216 Specifications PDF
