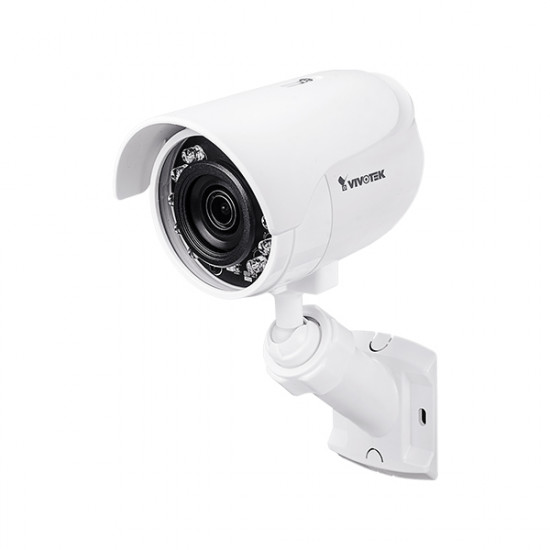

IB8360-W Vivotek 3.6mm 30FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Bullet IP Security Camera Built-in WiFi 12VDC

VIVOTEK’s IB8360 and IB8360-W (wireless) are stylish 2-megapixel mini outdoor bullet network cameras, specifically designed for boutique retail applications. Delivering a resolution of 1920x1080 at 30 fps, having IR illuminators effective up to 12 meters, and including SNV technology for low light environments, these remarkable cameras provide users with superior image quality around the clock.

When coupled with VIVOTEK’s Smart Stream II technology, the IB8360/IB8360-W can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera depending on scenes. Built to withstand challenging weather conditions, the IB8360/IB8360-W is armed with weatherproof IP66-rated housing to withstand rain and dust, and ensure smooth operation.

VIVOTEK provides two easy-to-install options for this compact camera; the IB8360-W boasts a 802.11b/g/n compatible wireless connection, and the IB8360 is designed for Power over Ethernet (PoE) functionality. Both cameras were designed and constructed for simple installation and easy connection.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 256MB

Camera Features

• Image Sensor - 1/2.9" Progressive CMOS
• Maximum Resolution - 1920 x 1080
• Lens Type - Fixed-focal
• Focal Length - f = 3.6 mm
• Aperture - F2.0
• Iris Type - Fixed-iris
• Field of View - 89° (Horizontal), 46° (Vertical), 105° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Enhanced
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 12 meters with Smart IR, IR LED*10
• Minimum Illumination - 0.1 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W)
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.264 & MJPEG
• Maximum Frame Rate - 30 fps @ 1920 x 1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 65dB
• Dynamic Range - 70dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream II
• Image Settings - Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, SSL, TLS, ARP, CIFS/SMB
• Interface - IEEE 802.11 b/g/n WLAN
• ONVIF - Supported, specification available at www. onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - DC 12V power input*1
• LED Indicator - System power and status indicator
• Power Input - DC 12V 1.5A
• Power Consumption - Max. 6.1 W
• Dimensions - 99.22 x 74.47 x 163.53 mm
• Weight - .43lbs
• Casing - IP66
• Safety Certifications - CE, LVD, FCC Class A, VCCI, C-Tick
• Operating Temperature - Starting Temperature: -4°F ~ 122°F, Working Temperature: -4°F ~ 122°F
• Humidity - 90%
• Warranty - 24 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above Quicktime: 7 or above

Included Accessories

• Power Adapter - IB8360-W: 12V, 1.5A DC power adapter
• Others - Quick installation guide, warranty card, stand with screw kit

IB8360-W Specifications PDF
