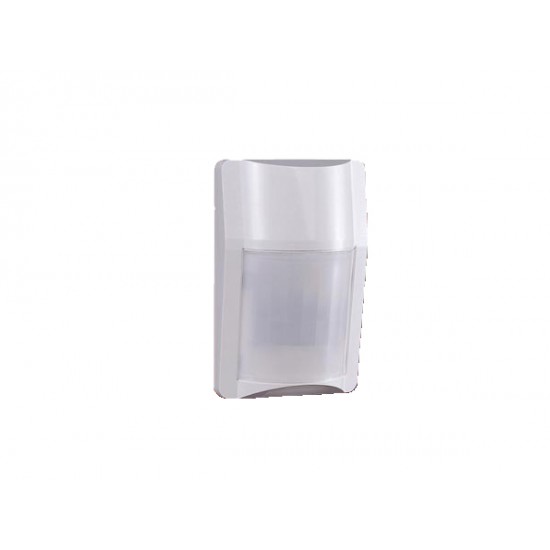

PA-450 TAKEX Passive IR Sensor (PIR), 35' Wide Angle, Dual Element, MOS FET Output - Selectable - N/C-N/O, 12VDC

PA-450 TAKEX Passive IR Sensor (PIR), 35' Wide Angle, Dual Element, MOS FET Output - Selectable - N/C-N/O, 12VDC
PA-450 TAKEX Passive IR Sensor (PIR), 35' Wide Angle, Dual Element, MOS FET Output - Selectable - N/C-N/O, 12VDC
  • Brand: Takex
  • Model: PA-450
  • SKU: PA-450
  • MPN: PA-450
Based on 0 reviews. - Write a review
$21.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: PA-450

TAKEX Passive IR Sensor (PIR), 35' Wide Angle, Dual Element, MOS FET Output - Selectable - N/C-N/O, 12VDC

  • Detection System - Passive infrared
  • Modulation - Pulse Count
  • Protection Distance Indoors - 36ft. when mounted at 8.3ft. height
  • Alarm Output Dry - contact (Semi-Conductor) (N/C, N/O selectable), Reset: Approx. 2 sec., Rating 24V, 0.25A max. (protective resistance 3.3Ω)
  • Tamper Output - 0.1A, 30V N.C.
  • Alarm Led Red - *Blinking at warming up. * Lighting at alarm (LED disabled). *Blinking at memory activated (3 min.) *Lighting at memory indication (47 min.)
  • Supply Power - 10 to 18V DC (non polarity)
  • Current Consumption - 25mA max.
  • Ambient Temperature - +5°F to +131°F without condensation
  • Installation Indoor - wall mount, ceiling mount with optional attachment BCW-401)
  • Weight - 4.2 oz.
  • External Appearance - Body ABS resin. Cover: PE resin
