PR-10B TAKEX 33' Indoor Single Beam, N/C Relay, 10.5 to15VDC

PR-10B TAKEX 33' Indoor Single Beam, N/C Relay, 10.5 to15VDC
PR-10B TAKEX 33' Indoor Single Beam, N/C Relay, 10.5 to15VDC
  • Brand: Takex
  • Model: PR-10B
  • SKU: PR-10B
  • MPN: PR-10B
$174.00

Model Number: PR-10B

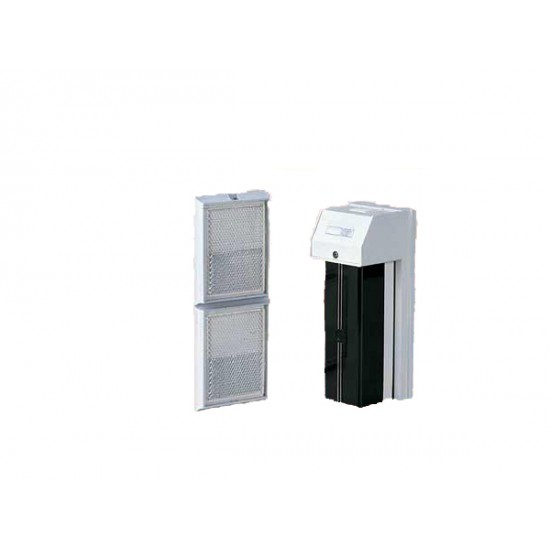

TAKEX 33' Indoor Single Beam, N/C Relay, 10.5 to15VDC

  • Detection System - Reflective, Active Infrared Beam
  • Wavelength - 940nm
  • Modulation - 500Hz
  • Protection Distance - Indoors 10m (33ft.)
  • Response Time - 50-100msec.Adjustable
  • Alarm Output:
    • Dry Relay Contact
    • Form B, N/C
    • Reset: Approx. 1sec.
  • Contact Rating - 30VAC/DC 0.5A Max
  • Alarm Led Red - On at Alarm
  • Lens Adjustment - Horizontal: 90°
  • Supply Power - 10 to 26VDC ( non polarity)
  • Current Consumption - 30mA (at 12VDC)
  • Ambient Temperature - -13°F to +131°F (-25°C to +55°C)
  • Installation - Wall or Post mounting
  • Wiring - Terminals
  • Weight - Sensor + Reflector:7.7oz (220g)
  • External Appearance - Body ABS resin (white)
