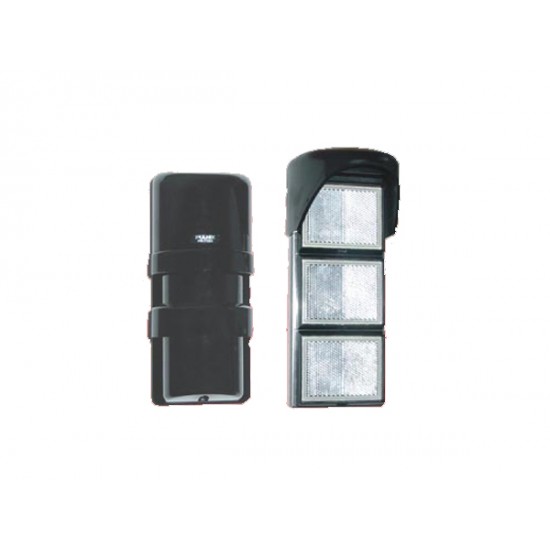

PR-11BE TAKEX Indoor/Outdoor Reflective Beam Sensor – 11M

PR-11BE TAKEX Indoor/Outdoor Reflective Beam Sensor – 11M
PR-11BE TAKEX Indoor/Outdoor Reflective Beam Sensor – 11M
  • Brand: Takex
  • Model: PR-11BE
  • SKU: PR-11BE
  • MPN: PR-11BE
Based on 0 reviews. - Write a review
$190.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Model Number: PR-11BE

TAKEX Indoor/Outdoor Reflective Beam Sensor – 11M

  • Detection System: Reflective, Active Infrared Beam
  • Wavelength: 940nm
  • Modulation: Modulation 500Hz
  • Protection Distance Outdoors: 1 to 11m (3.3 to 36ft)
  • Protection Distance Indoors: 1 to 15m (3.3 to 50ft)
  • Response Time: 50-100msec.Adjustable
  • Frequency Selection: Not Applicable
  • Alarm Output: Dry Relay Contact, Form B - N/C, Reset: Approx. 1sec.
  • Contact Rating: 30VAC/DC 0.5A Max
  • Environmental Output: Not Applicable
  • Contact Rating1: Not Applicable
  • Tamper Output: Dry contact relay
  • Contact Rating2: 30V(AC/DC) 0.5A
  • Alarm Led Red: On at Alarm
  • Sensitivity Attenuation Led Red: On when beam is attenuated
  • Alarm Memory Led Red: Not Applicable
  • Lens Adjustment: Vertical: 10°, Horizontal: 90°
  • Supply Power: 10.5 to 30VDC ( non polarity)
  • Current Consumption: 55mA max.
  • Ambient Temperature: -13°F to +140°F (-25°C to +55C)
  • Installation: Wall or Post mounting
  • Wiring: Terminals
  • Accessories: Refer Accessory Listing
  • Weight: Sensor + Reflector:32oz (920g)
  • External Appearance: Body ABS resin (wine red)
