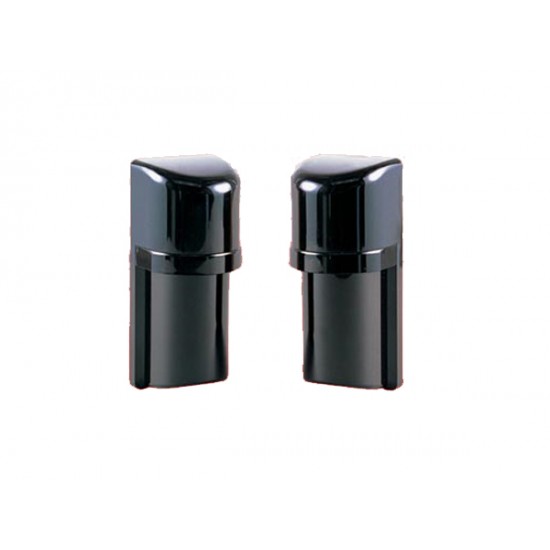

PB-30TK TAKEX 100'/200' Double Modulated Dual Beam, N/O N/C Relay, 10 to 30VDC
- Brand: Takex
- Model: PB-30TK
- SKU: PB-30TK
- MPN: PB-30TK
$122.00
Model Number: PB-30TK
TAKEX 100'/200' Double Modulated Dual Beam, N/O N/C Relay, 10 to 30VDC
- Detection System: Twin Active Infrared Beam
- Wavelength: 940nm
- Modulation: Double Modulation
- Protection Distance Outdoors: 30m (100ft.)
- Protection Distance Indoors: 60m (200ft.)
- Signal Arrival Distance: 200m (660ft.)
- Response Time: 50-700msec.Adjustable
- Frequency Selection: Not Applicable
- Alarm Output: Dry Relay Contact,FormC, N/O-C-N/C
- Contact Rating: 30V(AC/DC) 0.5A Max.
- Environmental Output: Not Applicable
- Tamper Output: Microswitch Dry Contact, Form B, N/C
- Contact Rating2: 30V (AC/DC) 0.5A Max.
- Alarm Led Red: On at Alarm
- Sensitivity Attenuation Led Red: On when beam is attenuated
- Alarm Memory Led Red: Not Applicable
- Lens Adjustment: Vertical: 10° Horizontal: 90°
- Supply Power: 10 to 30VDC non polarity)
- Current Consumption: 55mA Max.
- Ambient Temperature: -13F° to +140°F (-25°C to +60°C)
- Installation: Wall or Post mounting
- Wiring: Terminals
- Accessories: Refer Accessory Listing
- Weight: Transmitter:13.3oz (380g) Receiver:14.0oz (400g)
- External Appearance: PC resin (wine red)
