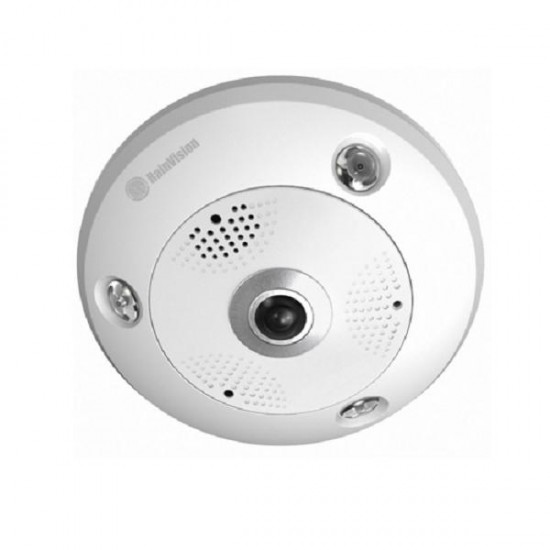

IPHFE6-IR-V Rainvision 1.27mm 30FPS @ 6MP Outdoor IR Day/Night Fisheye Panoramic IP Security Camera 12VDC/PoE

Features:

• 30FPS @ 6MP (3072 x 2048)
• 1.27mm Lens
• H.264 / MJPEG
• IR Range up to 30’
• DWDR, DNR, Day/Night
• Outdoor IP66, Vandal-proof IK10
• 12VDC, PoE
• Available in White

Specifications

Camera

• Image Sensor - 1/1.8” progressive scan CMOS
• Electronic Shutter Speed - 1/25s (1/30s) ~ 1/100,000s
• Min. Illumination - 0.05 lux (F1.2, AGC ON) 0.3 lux (F2.8, AGC ON) 0 lux with IR
• Lens - 1.27mm, F2.8; Angle of view: 360°
• Lens Mount - M12
• Day & Night - ICR

Video

• Frame Rate - High-frame Mode: support 50Hz: 1 x fisheye 25fps @ 2048x1536 or 25fps @ 1536x1536, or 4 x PTZ 25fps @ 800x600 60Hz: 1 x fisheye 30fps @ 2048x1536 or 30fps @ 1536x1536 or 4 x PTZ 30fps @ 800 x 600 Multi-channel Mode: 50Hz 1 x fisheye 20fps @ 1536 x 1536, and 1 x panoramic 20fps @ 1600 x 1200 and 3 x PTZ 20fps @ 800 x 600 60Hz: 1 x fisheye 20fps @ 1536 x 1536 and 1 x panoramic 20fps @ 1600 x 1200 and 3 x PTZ 20fps @ 800 x 600
• Video Bit Rate - 32 Kbps ~ 16 Mbps

Audio

• Compression - G.711 / G.726 / MP2L2

Network

• Protocol - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Network Storage - NAS, SAMB / CIFS
• Alarm Trigger - Motion detection, Dynamic analysis, Tampering alarm
• Security - User Authentication, Watermark, IP address filtering, Anonymous access
• Standard - ONVIF, PSIA, CGI


• Max. Resolution - 3072 x 2048
• Number of Streams - High Frame Rate Mode: 1 or 4 Multi-Channel: up to 5 (No sub-streams)
• Digital Noise Reduction - 3D DNR
• Wide Dynamic Range - Digital WDR
• Image Settings - Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
• High Light Compensation - Yes
• Day/night Switch - Auto / Manual / Scheduled / Alarm trigger

Compression Standard

• Video Compression - H.264/MJPEG
• Audio Bit Rate - 64Kbps(G.711) / 16Kbps(G.726) / 64Kbps (MP2L2)
• H.264 Type - Baseline Profile / Main Profile / High Profile
• Video Bit Rate - 32 Kbps ~ 16 Mbps

Interface

• Audio Input - 1-ch 3.5 mm audio interface, MIC IN/LINE IN
• Audio Output - 1 3.5mm audio interface, Mic in/Line in 1 built-in microphone by default, 24db
• Communication Interface - 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface
• Alarm Input - 1
• Alarm Output - 1
• On-Board Storage - Built-in Micro SD/SDXC slot, up to 64 GB

General

• Power Supply -12 VDC ± 10% , PoE (802.3af)
• Power Consumption - Max. 12W
• Operating Conditions - -22 °F – 140 °F, Humidity 95% or less (non-condensing)
• IR Range - Max. 32 feet
• Vandal Resistance - IK10
• Dimensions - Φ6.59” × 1.79”
• Weight - 3.09 lbs
• Warranty - 3 Years

IPHFE6-IR-V Specifications PDF
