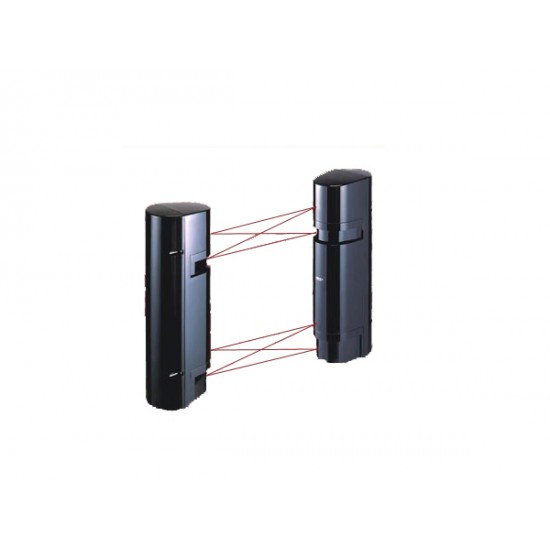

PB-IN-100AT TAKEX 330' / 660 Intelligent Double Dual Beam, AND-OR Gated, N/O N/C Relay, 10 to 30VDC

Model Number: PB-IN100AT

TAKEX 330' / 660 Intelligent Double Dual Beam, AND-OR Gated, N/O N/C Relay, 10 to 30VDC

• Detection System - Double Twin, Active Infrared Beam
• Wavelength - 940nm
• Modulation - Double Pulse Modulation
• Protection Distance Outdoors - 100m (330ft.)
• Protection Distance Indoors - 200m (660ft.)
• Signal Arrival Distance - 1000m(3300ft.)
• Response Time - Dual Response Time System AND Gated:35-500Msec. Adjustable OR Gated:100,200,300,500msec. Switch selectable
• Frequency Selection - 4 Channels
• Environmental Output:
  • Dry Relay Contact
  • N/O, N/C Switch Selectable
• Alarm Output:
  • Dry Relay Contact
  • N/O-C-N/C Switch Selectable
  • Reset: Approx. 1.5 secs.
• Tamper Output:
  • Micro-switch Dry Contact
  • Form B, N/C
• Contact Rating - 30VAC/DC 1.0A Max.
• Contact Rating2 - 30VDC 0.1A Max.
• Alarm Led Red - On at Alarm
• Alarm Memory Led Red:
  • Pulsing at Alarm
  • Manual Reset: By Auxilliary Switch
  • Auto Reset:55 to 60mins.
• Sensitivity Attenuation Led Red - On when beam is attenuated
• Lens Adjustment:
  • Vertical: 10°
  • Horizontal: 90°
• Supply Power: - 10 to 30VDC ( non polarity)
• Current Consumption: - 85mA typical (120mA Max.at alignment)
• Ambient Temperature - -31F° to +151°F (-35°C to + 66°C)
• Installation - Wall or Pole mounting
• Wiring - Terminals
• Weight:
  • Transmitter:2.6LBS (42OZ)
  • Receiver:3LBS (45.5OZ)
• External Appearance - PC resin (wine red)
