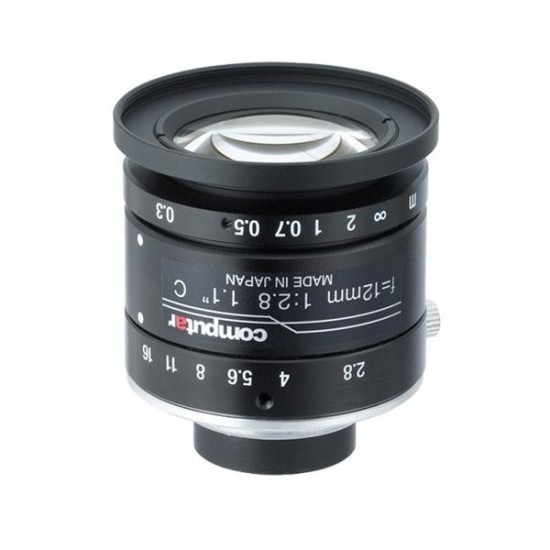

V1228-MPY Computar 1.1" C-Mount 12mm F/2.8 12 Mega-Pixel Ultra Low Distortion Manual Iris Lens
- Brand: Computar
- Model: V1228-MPY
- SKU: V1228-MPY
- MPN: V1228-MPY
$441.30
Features:
- For Machine Vision and ITS Applications
- 12mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F 2.8
- 3.45µm pixel size
- Image circle Ø17
- Also Available in 8, 16, 25, 35 and 50mm focal lengths
Specifications
- Model No. - V1228-MPY
- Focal Length - 12mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 14.2mm x 10.4mm(φ17.6mm)
- Operation Range
- Iris - F2.8 ‐ F16.0
- Focus - 0.3m ‐ Inf
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 1.1" Type - 35cm x 26cm
- Angle of View
- D - 1.1 Type 71.1°
- H - 1.1 Type 60.5°
- V - 1.1 Type 46.2°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ26.2mm
- Rear - φ16.7mm
- Distortion
- 1.1 type - -0.5%
- Back Focal Length - 8.4mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M40.5 P=0.5mm
- Dimensions - φ42.0mm x 36.1mm
- Weight - 98.3g
