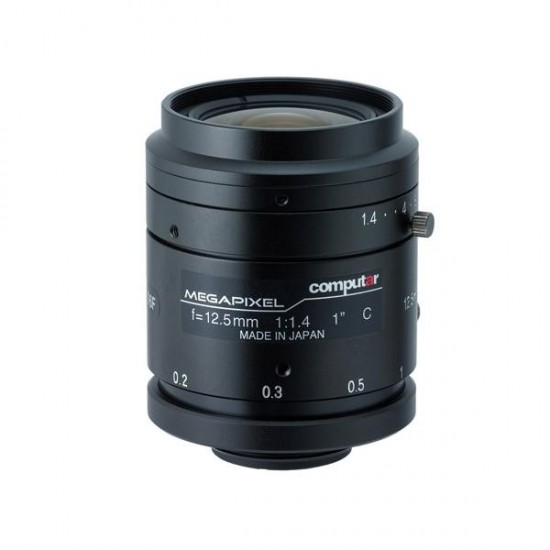

V1214-MP Computar 1" C-Mount 12.5mm F/1.4 2 Mega-Pixel Ultra Low Distortion Manual Iris Lens
- Brand: Computar
- Model: V1214-MP
- SKU: V1214-MP
- MPN: V1214-MP
$390.87
Features:
- 12.5mm Fixed Lens
- 2 Megapixel
- C Mount
- 1” format lens
- F 1.4
Specifications
- Model No. - V1214-MP
- Focal Length - 12.5mm
- Max. Aperture Ratio - 1:1.4
- Max. Image Format - 12.8mm x 9.6mm(φ16mm)
- Operation Range
- Iris - F1.4 ‐ F16.0
- Focus - 0.1m ‐ Inf
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 1" Type - 8.77 x 11.92cm
- Angle of View
- D - 1 Type 67.59°
- H - 1 Type 56.45°
- V - 1 Type 42.51°
- Operating Temperature - -10℃ ‐ +50℃
- Effective Lens Aperture
- Front - φ26.1mm
- Rear - φ17.6mm
- Distortion
- 1 type - -5.93%(y=8.0)
- Back Focal Length - 12.55mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M55.0 P=0.5mm
- Dimensions - 43 x 51.5mm
- Weight - 172g
