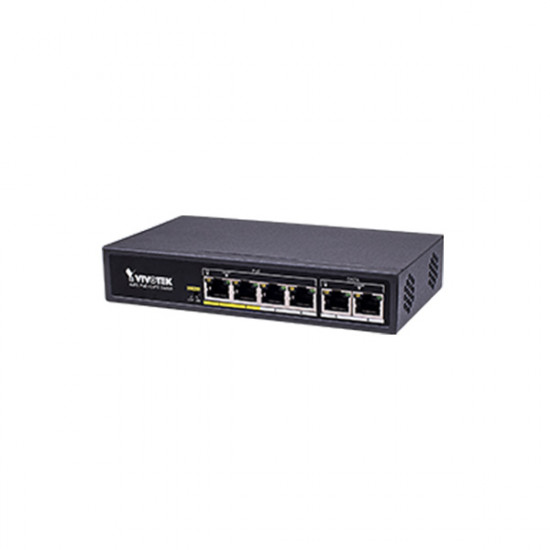

AW-FET-060C-065 Vivotek Unmanaged 4 Gigabit PoE + 2 Gigabit Port 60W Total PoE Switch
- Brand: Vivotek
- Model: AW-FET-060C-065
- SKU: AW-FET-060C-065
- MPN: AW-FET-060C-065
$98.00
Specifications
Networking Specfications
- 10/100 Mbps RJ45 PoE Port - 4
- 10/100 Mbps RJ45 Port - 2
- EX Mode PoE (200M @ 10Mbps)* - 2
Ethernet Performance
- Switching Capacity - 1.2 Gbps
- Mac Table - 2 K
- Jumbo Frame - 1536 Bytes
- Auto-MDI/MDI-X,Auto-Negotiation - Supported
Power Specifications
- Power Input Voltage - 100VAC ~ 240VAC
- Max. PoE OutputPower - Per Port 54VDC, Max. 30W
- Total PoE PowerBudget - 60W
- IEEE 802.3af/at - Supported
- Power Pin Assignment - 1/2(+), 3/6(-)
- PoE PD Auto Detection - Supported
- Surge Protection/EachPoE Port - 4 KV
- Surge Protection forAC Power - 4 KV
General
- Operating Temperature - 32°F ~ 122°F
- Storage Temperature - -4°F ~ 158°F
- Operating Humidity - 10% ~ 90% non-condensing
- Dimensions - 168 (L) x 94.1 (W) x 32(H) mm
- Weight - 0.5 KG
- Certifications - EMC: CE, FCC, VCCI, C-Tick Class A, Safety: EN60950-1, IEC60950-1
