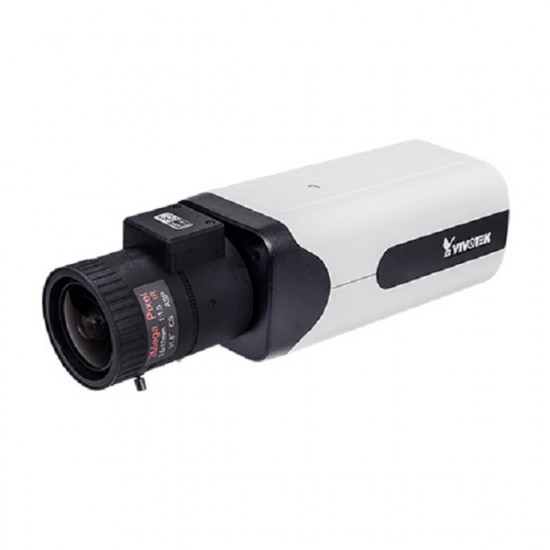

IP9165-HP Vivotek 3.6~17mm Varifocal 60FPS @ 1920x1080 Day/Night WDR Box IP Security Camera 12VDC/24VAC/POE

VIVOTEK’s IP9165-HP is a professional H.265 box network camera offering up to 60 fps at 1080p with outstanding image quality that sets it apart from the competition. With the latest VIVOTEK’s SNV II, WDR Pro II and Smart Stream III technologies, the camera provides clear imagery in both low light and high contrast environments and greatly reduces bandwidth and storage while retaining the highest quality of video.

Specifications

• Model - IP9165-HP

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128 MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Maximum Resolution - 1920 x 1080
• Lens Type - Vari-focal, Remote Back Focus
• Focal Length - f = 3.6 ~ 17 mm
• Aperture - F1.5 ~ F2.8
• Iris type - P-iris (DC-iris reserved)
• Field of View
  • 28° ~ 100° (Horizontal)
  • 16° ~ 55° (Vertical)
  • 32° ~ 119° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro II
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• Minimum Illumination
  • 0.01 Lux @ F1.5 (Color)
  • 0.005 Lux @ F1.5 (B/W)
• Pan/tilt/zoom Functionalities - ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB) Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 60 fps @ 1920 x 1080
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 66.2 dB
• Dynamic Range - 140 dB
• Video Streaming - Adjustable resolution, quality and constant, bit rate control; Smart Stream III
• Image Settings - Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface
  • External microphone input
  • External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors
  • RJ-45 cable connector for Network/PoE connection *1
  • Audio input *1
  • Audio output *1
  • DC 12V/AC 24V power in *1
  • Digital input *2
  • Digital output *2
  • RS485 *1
  • BNC *1
• LED Indicator - System power and status indicator
• Power Input
  • IEEE 802.3af PoE Class 0
  • DC 12V
  • AC 24V
• Power Consumption
  • DC 12V: Max. 9 W
  • AC 24V: Max. 18 W
  • PoE: Max. 9.06 W
• Dimensions
  • 151 x 70 x 61 mm (w/o lens)
  • 227 x 70 x 61 mm (w/ lens)
• Weight
  • 680 g (w/o lens)
  • 800 g (w/ lens)
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature
  • Start Temperature : 0°C ~ 50°C (32°F ~ 122°F)
  • Working temperature : -10°C ~ 60°C (14°F ~ 140°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players
  • VLC: 1.1.11 or above
  • Quicktime: 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, lens, camera stand, screw pack
