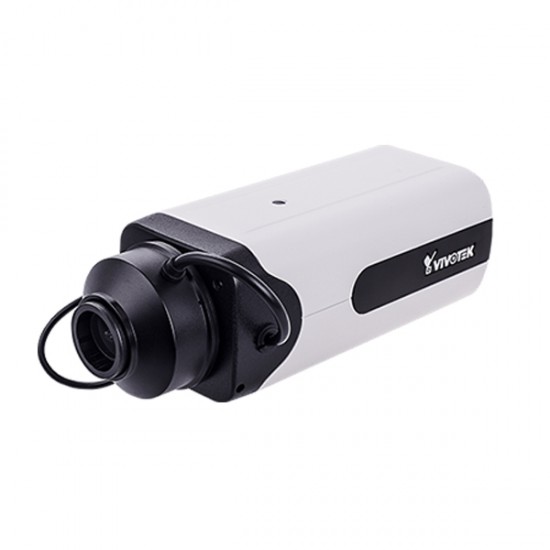

IP9167-HT-10MM Vivotek Varifocal 2.8~10mm Varifocal 30FPS @ 1920x1080 Day/Night WDR Box IP Security Camera 12VDC/POE

VIVOTEK’s IP9167-HT is a brand-new professional H.265 box network camera designed for a wide range of surveillance application, such as city surveillance, banking and SMB. It is equipped with a 2MP sensor with a viewing resolution of1920x1080 at 30 fps. Furthermore, IP 9167-HT includes either a f2.8-12mm or a f12-40mm remote focus lens, allowing the installer to have great coverage flexibility.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512 MB

Camera Features

• Image Sensor - 1/2.8" Progressive CMOS
• Maximum Resolution - 1920x1080
• Lens Type - Vari-focal, Remote Focus, CS-mount
• Focal Length - f = 2.8 ~ 10 mm
• Aperture - F1.6 ~ F2.97
• Iris type - P-iris
• Field of View - 35° ~ 105° (Horizontal), 20° ~ 55° (Vertical), 41° ~ 127° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.07 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W)
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 61 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant, bit rate control; Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface - External microphone input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection, human detection, time filter

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, advanced motion detection, MircoSD card life expectancy
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors
  • RJ-45 cable connector for Network 10/100 Mbps PoE connection*1
  • Audio input*1
  • Audio output*1
  • DC 12V power input*1
  • Digital input*2
  • Digital output*2
  • RS485 *1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 2, DC 12V
• Power Consumption - Max. 6.5W
• Dimensions - 188 (D) x 70 (W) x 61 (H) mm
• Weight - 660 g
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature
  • Starting Temperature - 0°C ~ 50°C (32°F ~ 122°F)
  • Working Temperature - -10°C ~ 60°C (14°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only)Internet Explorer 10/11
• Other Players
  • VLC - 1.1.11 or above
  • QuickTime - 7 or above
