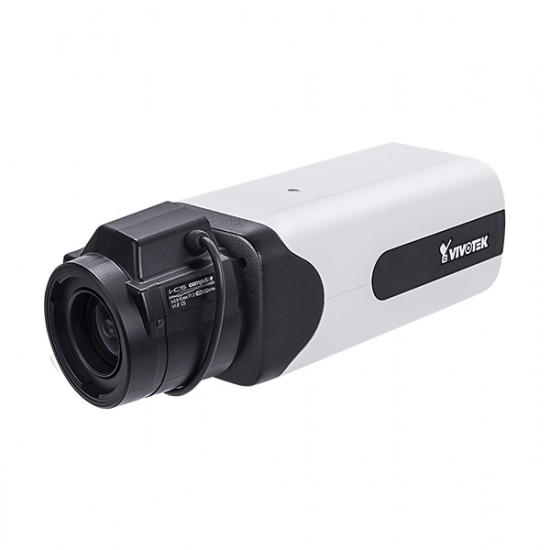

IP9191-HT Vivotek 3.9~10mm Varifocal 30FPS @ 3840x2160 Day/Night WDR Box IP Security Camera 12VDC/24VAC/POE

VIVOTEK’s IP9191-HT is a professional H.265 box network camera providing true 3840x2160 resolution at 30 fps. With ultra HD resolution, 30 frames per second, and VIVOTEK’s SNV and WDR Pro technologies, this camera is capable of delivering clear, detailed images in a variety of challenging applications such as city surveillance, transportation and industrial monitoring.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Maximum Resolution - 3840x2160
• Lens Type - Vari-focal, Remote Focus, i-CS
• Focal Length - f = 3.9 ~ 10 mm
• Aperture - F1.5 ~ F2.7
• Iris type - i-CS (P-iris/DC-iris reserved)
• Field of View - 45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.02 Lux @ F1.5 (Color), 00.01 Lux @ F1.5 (B/W)
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 60.5 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant, bit rate control; Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface - External microphone input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection, human detection, time filter

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, advanced motion detection, MircoSD card life expectancy
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors
  • RJ-45 cable connector for Network 10/100 Mbps PoE connection*1
  • Audio input*1
  • Audio output*1
  • DC 12V power input*1
  • Digital input*2
  • Digital output*2
  • RS485 *1
• LED Indicator - System power and status indicator
• Power Input - DC 12V, AC 24V, IEEE 802.3af PoE Class 0
• Power Consumption - Max. 12 W
• Dimensions - 151 x 70 x 61 mm (w/o lens), 209 x 70 x 61 mm (w/ lens)
• Weight - 671 g (w/o lens), 743 g (w/ lens)
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature
  • Starting Temperature - 0°C ~ 50°C (32°F ~ 122°F)
  • Working Temperature - -10°C ~ 50°C (14°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only)Internet Explorer 10/11
• Other Players
  • VLC - 1.1.11 or above
  • QuickTime - 7 or above
