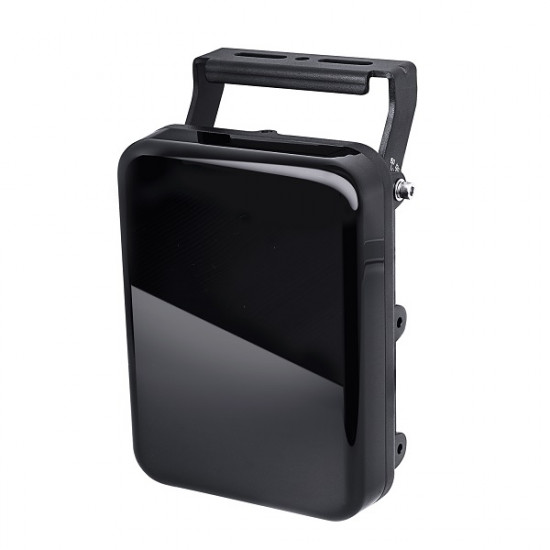

CA80I8-2040 Vivotek 850nm IR Illuminator Adjustable FOV Up to 918 ft. @ 40 Degrees 24VDC/24VAC - Special Order

CaMate CM80 is a series of professional IR illuminators designed with VIVOTEK’s Continous Variable Angle Technology (CVA Tech), providing highly efficient intensity and uniform distribution to fit 10° ~ 120° FOV via adjustable beam angles up to 350 meters. The series offers multiple options for outdoor and long-distance in many applications such as traffic LPR/ANPR, airports, parking lots and many more.

Specifications

Product Information

• Beam Angle (Horizontal) - 20° ~ 40°
• Distance - 170 -280 m 557 - 918 ft
• Beam Pattern - Elliptical
• LED Array - 24 pcs LED
• Wavelength - 850 nm
• External Input - IR ON/OFF control
• External Output - Day/Night switching
• Automatic IR On/Off - Controlled by Light Sensor
• Light Sensor Sensitivity - 1/5/10/30(default)/50/100% (Max. 1000 Lux) (accessed via CaMate remote/RS-485 control)
• Adjustable IR Power - 20% ~ 100% (accessed via CaMate remote/RS-485 control)

General

• Power Input - 24VDC ±10%, 24V AC(50/60Hz) ±10%
• Power Consumption - Max. 90 W
• Operating Temperature - -40 °C ~ +50°C (-40 °F ~ +122 °F)
• Working Temperature - -50 °C ~ +50 °C (-58 °F ~ +122 °F)
• Dimensions - 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)
• Weight - 2.1 kg
• Cable Length - 0.75 m (2.46 ft) UL AWM
• Casing - IP68, IK10
• Safety Certifications - IEC 62471, EN 50130-4, CE: EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class A, EN60529
• Humidity - 90%
• Warranty - 5 years

Included Accessories

• Bracketry - U-Type Bracket (134 × 34 × 81.5 mm)
• Remote Controller - CMA-E01
