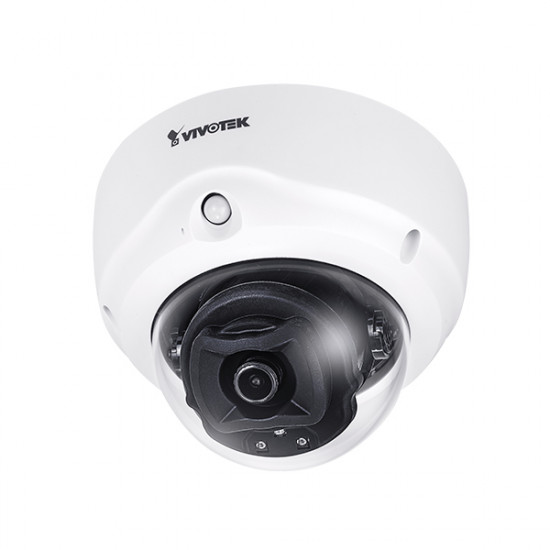

FD9187-H Vivotek 2.8mm 30FPS @ 5MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/24VAC/PoE

VIVOTEK FD9187-H is indoor dome network camera equipped with a full HD sensor enabling resolution of 2560 x 1944 at 30 fps. And FD9187-H also supports standard 1920x1080 resolution at 60 frames per second. Featuring VIVOTEK SNV and WDR Pro technology, FD9187-H is capable of capturing high quality image whether in high contrast or low light environment.

Specifications

Model - FD9187-H

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2.7" Progressive CMOS
• Maximum Resolution - 2560x1920 (5MP)
• Lens Type - Fixed-focal
• Focal Length - f= 2.8 mm
• Aperture - F2.0
• Auto-iris - Fixed-iris
• Field of View - 103" (Horizontal), 76" (Vertical), 134" (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• Minimum Illumination - 0.06 Lux @ F2.0 (Color), <0.01 lux, F2.0 (B/W), 0 Lux with IR illumination on
• Pan Range - 350°
• Tilt Range - 80°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• IR Illuminators - Built-in IR illuminators up to 30 meters with Smart IR, IR LED*2
• On-board Storage - Slot type : MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 54 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way Audio (full duplex)
• Compression - G.711, G.726
• Interface - Built-in microphone External microphone input External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) (*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.)
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Smart Motion Detection - Five-window video motion detection, human detection, time filter
• VCA - Standard VCA (optional) (*Including line crossing detection, field detection, loitering detection)
• VADP Package - Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, PIR detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - RJ-45 cable connector for 10/100Mbps, Network/PoE connection, Audio line input, Audio line output, AC 24V power input (optional), DC 12V power input, Digital input *1, Digital output *1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0, DC 12V, AC 24V (optional) (Redundant Power)
• Power Consumption - PoE : Max. 8.1 W, DC 12V : Max. 7.4 W, AC 24V : Max. 7.5 W
• Dimensions - 139 x 104 mm
• Weight - 538 g
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature - Starting Temperature : 0°C ~ 45°C (32°F ~ 113°F), Working Temperature : -10°C ~ 45°C (14°F ~ 113°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players - VLC : 1.1.11 or above, QuickTime : 7 or above
