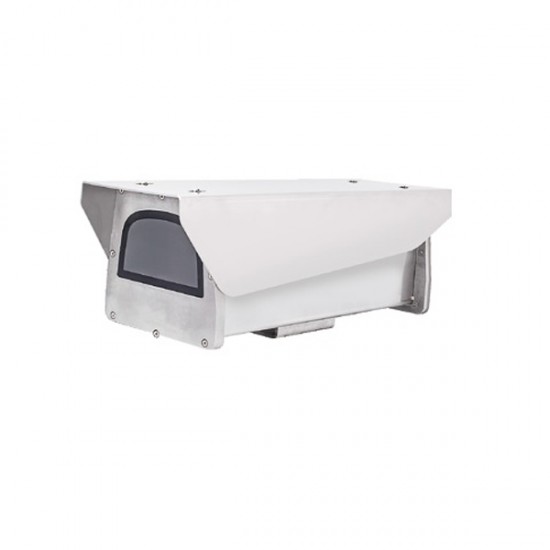

AE-510 Vivotek 24VAC Voltage Outdoor Stainless Enclosure - Special Order
- Brand: Vivotek
- Model: AE-510
- SKU: AE-510
- MPN: AE-510
$1,630.80
Constructed with AISI 316L stainless steel, VIVOTEK’s stainless camera housing is designed to protect network and analog box/ brick cameras from highly corrosive and severe environments such as those found in offshore, chemical, petrochemical, and tunnel areas. Further, with built-in window heater and fan, it will prevent both ice and mist that could distort or obscure images. The AE-510 series is compliant with IP68 and IK10 standards. This model is powered by 24VAC input and provides 12VDC and 24VAC output inside the housing.
Specifications
- Model Name - AE-510
- Input Voltage - 24VAC
- Max. Output Power Budget - 12VDC, 24VAC
- Power Consumption - Fan: 2W, Window Heater: 5W
- Operating Temperature - -20°C ~ 65°C (-4°F ~ 149°F)
- Windows Heater ON/OFF - ≤ 30°C (86°F) ON, ≥ 35°C (95°F) OFF
- Fan ON/OFF - 40°C (104 °F) ON, ≤ 35°C (95 °F) OFF
- Waterproof IP Rating - IP68
- Vandal Proof - IK10
- Supported Cameras - All VIVOTEK Box Cameras
- Included Accessories - Quick Installation Guide, Screw Kit
- Dimension - 460 x 172 x 163.5 mm
- Weight - 7.5 kg
- Mount Type - Wall Mount
