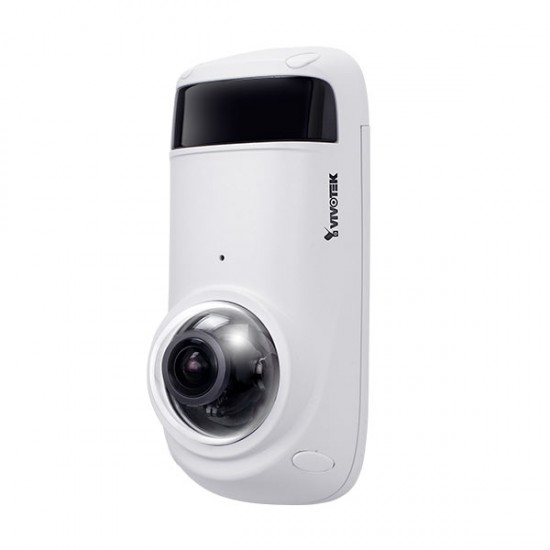

CC9381-HV Vivotek 1.45mm 20FPS @ 5MP Outdoor IR Day/Night WDR Panoramic IP Security Camera PoE

VIVOTEK's new CC9381-HV is a vandal-proof IR fisheye network camera offering up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). With its unique design and inconspicuous appearance, the CC9381-HV is suitable for a wide array of environments. Featuring 180° horizontal panoramic views with adjustable 25° tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera's weatherproof compact size also makes it an ideal choice for indoor and outdoor scenarios such as boutiques, convenience stores, banks, schools, parking lots and residential homes.

Specifications

Model - CC9381-HV

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2.7"" Progressive CMOS
• Max. Resolution - 2560 x 1920 (5MP)
• Lens Type - Fixed-focal
• Focal Length - 1.45 mm
• Aperture - F2.2
• Iris type - Fixed-Iris
• Field of View - 180° (Horizontal), 120° (Vertical), 180° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR
• Minimum Illuminators - 0.11 Lux @ F2.2 (Color), 0.01 Lux @ F2.2 (B/W), 0 Lux with IR Illuminators on
• Tilt Range - ±25°
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Slot type : MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 20 fps @ 2560x1920 (WDR On), 30 fps @ 2560x1920 (WDR Off)
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 62 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, defog, 3DNR, pixel calculator

Audio

• Audio Capability - One-way Audio
• Compression - G.711, G.726
• Interface - Built-in microphone
• Effective Range - 5 meters

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, Specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• VADP Package - Genetec Package, Trend Micro IoT Security, Smart Motion Detection*, Stratocast(support) *Smart Motion Detection is only for IB9389-H/EH, IB9389-HT/EHT.

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera ampering detection, audio detection, MicroSD card life expectancy, shock detection, cybersecurity events (block brute force attack, block cyber attack, quarantine event)
• Alarm Events - Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector for 10/100Mbps Network/PoE connection
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0
• Power Consumption - Max. 6.7 W
• Dimensions - 159.9 x 71.92 x 60.2 mm (Dome to rear panel), 39.2 mm (Flat to rear panel)
• Weight - 492 g
• Casing - IP66, IK10
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick, UL
• Operating Temperature - Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F), Working Temperature : -20°C ~ 50°C (-4°F ~ 122°F)
• Humidity - 90%
• Warranty - 24 months

System Requirements

• Operating System - Microsoft Windows 8/7 Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC : 1.1.11 or above, QuickTime : 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, mounting bracket, tilt bracket, screw pack
