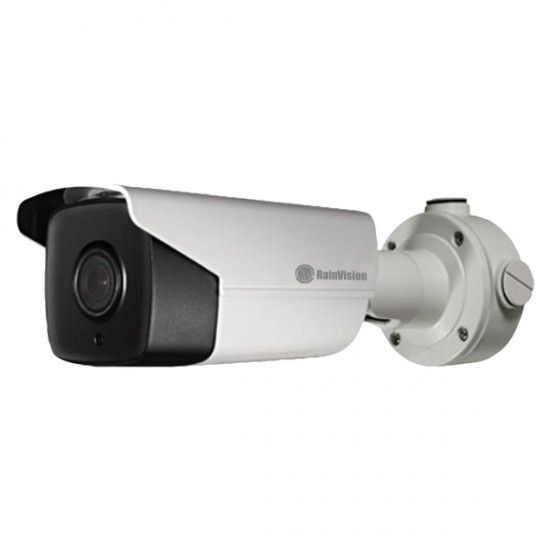

IPHLPR2-83M-W Rainvision 8-32mm Motorized 60FPS @ 1080p Outdoor IR WDR Day/Night LPR IP Security Camera 12VDC/PoE - White

Features:

• 60FPS @ 2MP (1920 x 1080)
• 8-32mm Motorized Lens
• LPR Capture Distance (2 Car Lanes): 35 ft ~ 100 ft
• H.264 / MPEG4 / MJPEG
• IR Range up to 330’
• WDR, DNR, Day/Night
• Outdoor IP67
• 12VDC, PoE
• Available in White

Specifications

Camera

• Image Sensor - 1/2.8" Progressive Scan CMOS
• Min. Illumination - 0.002 Lux @ F1.2, AGC ON, 0.0027 @ F1.4 AGC On, 0 Lux with IR
• Shutter Speed - 1s to 1/100,000s
• Lens - 8-32mm Motorized
• Day & Night - IR Cut Filter with Auto Switch
• IR Range - 330'
• Digital Noise Reduction - 3D DNR
• WDR - 120dB

Compression Standard

• Video Compression - H.264 / MPEG4
• Type - Main Profile H.264
• Video Bit Rate - 32 Kbps ~ 16 Mbps
• Triple Streams - Supported
• Audio Compression - G.711 / G.722.1 / G.726 / MP2L2
• Audio Bit Rate - 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32‐192Kbps (MP2L2


• Max. Resolution - 1920 x 108
• Main Stream - 50Hz :50fps ( 1920 x 1080, 1280 x 960, 1280 x 720) 60Hz: 60fps ( 1920 x1080, 1280 x 960, 1280 x 72
• Third Stream - Supported
• Image Setting - Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable by Client Software or Web Browser
• BLC - Support
• ROI - Four Fixed Regions for Each Stream and Dynamic Tracking

License Plate Recognition

• LPR Capture Distance (2 Car Lanes) - 35 ft ~ 100 ft
• Accuracy - Capture Rate Up to 99% Recognition Rate Up to 95%
• Vehicle Speed - Captures Speeds Up to 75MPH
• Line Numbers - Up to 4 Lines, Set to 1 or 2 for Best Performan
• Direction - Supports Capture and Recognition of Vehicles Entering and Leavin
• Whitelist / Blacklist - Up to 2,048

Network

• Network Storage - Micro SD/SDHC/SDXC card (128GB), Local Storage and NAS (NFS, SMB/CIFS), ANR
• Alarm Trigger - Road Traffic, Motion Detection, Video Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General - One-key Reset, Dual-VCA, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filt
• API - ONVIF (Profile S, Profile G), ISAPI
• Interface - 1 RJ45 10M/100M Self Adaptive Ethernet Po
• Audio Interface - 1 Input, 1 Output

General

• Operating Conditions - -22°F ~ 140°F, Humidity 95% or Less (Non-condensing)
• Power Requirement - DC12V ± 10%, Terminal Block PoE (802.3af, class 4)
• Power Consumption - Max 12 W
• Ingress Protection - IP67, Lightning Protection, Surge Protection, Voltage Transient, Anti-static Protection
• Dimensions - 3.94" x 4.09" x 12.28"
• Weight - 4.57 lbs
• Warranty - 3 Years
• Package Contents - Camera, Installation CD/Manual/Template, Mounting Screws, Junction Box

IPHLPR2-83M-W Specifications PDF
