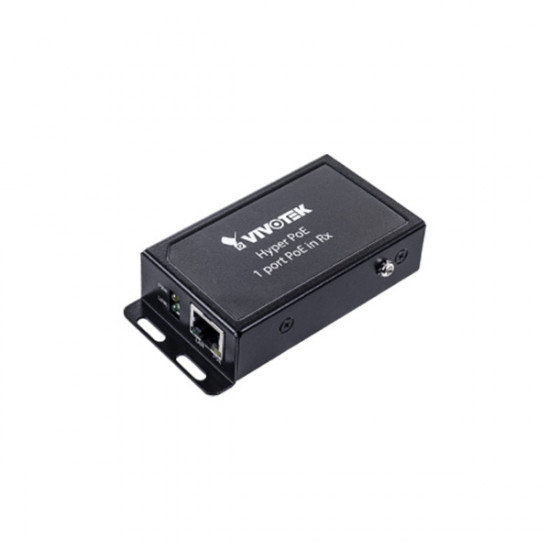

AP-FHP-0100-R Vivotek 1 Port Hyper PoE Rx Module PoE Input
- Brand: Vivotek
- Model: AP-FHP-0100-R
- SKU: AP-FHP-0100-R
- MPN: AP-FHP-0100-R
$291.60
The Hyper PoE Extender for IP cameras is a long-range solution providing Fast Ethernet and Power over Ethernet cables up to 1,200m. This product line is the best solution for IP video surveillance in cases of long-distance applications.
Specifications
- Model - AP-FHP-0100-R
- Product Description - 1 Port Hyper PoE Rx Module, PoE input
- Hyper PoE Port - 1x FE RJ45 Power Pin 1~4(-), 5~8(+)
- Ethernet Port - 1 x FE RJ45, 30/60/95W PoE input
- DC Jack -
- PoE on/off Switch -
- Transmission Mode - Rx
- Max. PoE Distance (Cat 6) - 8.8W @1200m, 100Mbps
- Max. Ethernet Distance (Cat 6) - 2400m, 100Mbps
- Power Input - 30/60/95W PoE input
- Power Consumption - 3W
- PoE Standard - IEEE 802.3 bt
- Dimension - 102.9 x 48.9 x 23.4 mm
- Weight - 156 g
- Operating Temperature - -20˚C ~ 60˚C ( -4˚F ~ 140˚F)
- Storage Temperature - -20˚C ~ 85˚C ( -4˚F ~ 185˚F)
- Operating Humidity - 5% ~ 95% non-condensing
- Safety Certification - CE, FCC, VCCI, C-Tick
