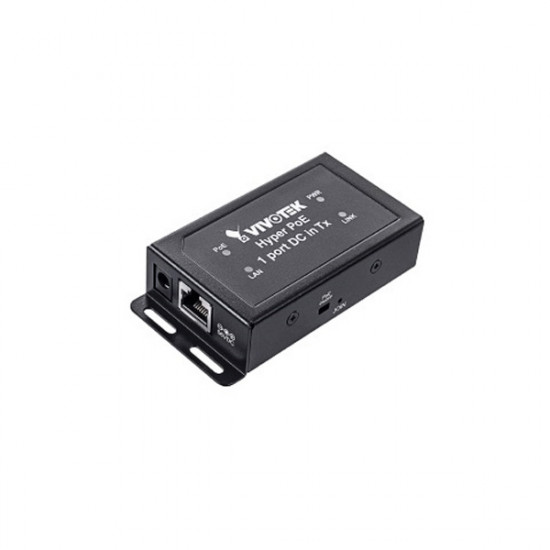

AP-FHP-0105-T Vivotek 1 Port Hyper PoE Tx Module
- Brand: Vivotek
- Model: AP-FHP-0105-T
- SKU: AP-FHP-0105-T
- MPN: AP-FHP-0105-T
$237.60
The Hyper PoE Extender for IP cameras is a long-range solution providing Fast Ethernet and Power over Ethernet cables up to 1,200m. This product line is the best solution for IP video surveillance in cases of long-distance applications.
Specifications
- Model - AP-FHP-0105-T
- Product Description - 1 Port Hyper PoE Tx Module
- Hyper PoE Port - 1x FE RJ45 Power Pin 1~4(-), 5~8(+)
- Ethernet Port - 1 x FE RJ45, PoE output, 1/2(+), 3/6(-), 4/5(+),7/8(-)
- DC Jack - 1
- PoE on/off Switch - 1
- Transmission Mode - Tx
- Max. PoE Distance (Cat 6) -
- Max. Ethernet Distance (Cat 6) -
- Power Input - DC 56V or Hyper PoE
- Power Consumption - 3W
- PoE Standard -
- Dimension - 109 x 51.5 x 24 mm
- Weight - 169 g
- Operating Temperature - -20˚C ~ 60˚C ( -4˚F ~ 140˚F)
- Storage Temperature - -20˚C ~ 85˚C ( -4˚F ~ 185˚F)
- Operating Humidity - 5% ~ 95% non-condensing
- Safety Certification - CE, FCC, VCCI, C-Tick
