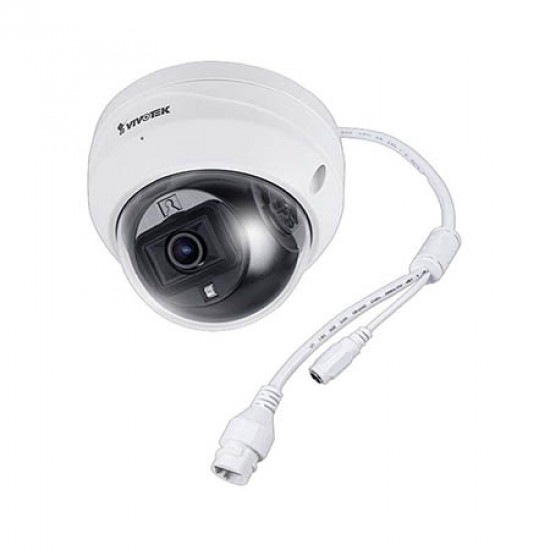

FD9369-F2 Vivotek 2.8mm 30FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera PoE

VIVOTEK FD9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. The FD9369 offers a fixed-focus lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility. To protect the camera from a range of outdoor environments, the FD9369 is encased in robust IP66 and IK10 rated housing.
Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 256MB

Camera Features

• Image Sensor - 1/3.1" Progressive CMOS
• Max. Resolution - 1920x1080 (2MP)
• Lens Type - Fixed-focal
• Focal Length - f = 2.8 mm
• Aperture - F2.0
• Iris type - Fixed-iris
• Field of View - 81° (Horizontal), 44° (Vertical), 95° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Enhanced
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
• Minimum Illumination - 0.08 lux @ F2.0 (Color)
• Pan Range - 350°
• Tilt Range - -10° - 75°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom, (4x on IE plug-in, 12x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 1920x1080
• Maximum Streams - 2 video streams (Up to 7 configurable profiles)
• S/N Ratio - 59 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator

Audio

• Audio Capability - One-way audio
• Audio Compression - G.711, G.726
• Audio Interface - Built-in microphone
• Effective Range - 5 meters

Network

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

• Smart Motion Detection - Five-window video motion detectinon
• VADP Package - Smart Motion Detection

Alarm and Event

• Alarm Triggers - Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
• Alarm Events - Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector for Network 10/100 Mbps PoE connection*1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 2
• Power Consumption - PoE: Max. 6.49W/4W (IR on/off), DC 12V: Max. 5.1W/3.4W (IR on/off)
• Dimensions - Ø 4.33" x 3.35"
• Weight - 1.03 lbs
• Casing - IP66, IK10(Housing)
• Certifications - EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
• Operating Temperature - Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Humidity - 95% RH (non-condensing)
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above

Included Accessories

• Others - Quick installation guide, alignment sticker, screw pack, cable gland, desiccant bag

FD9369-F2 Datasheet
