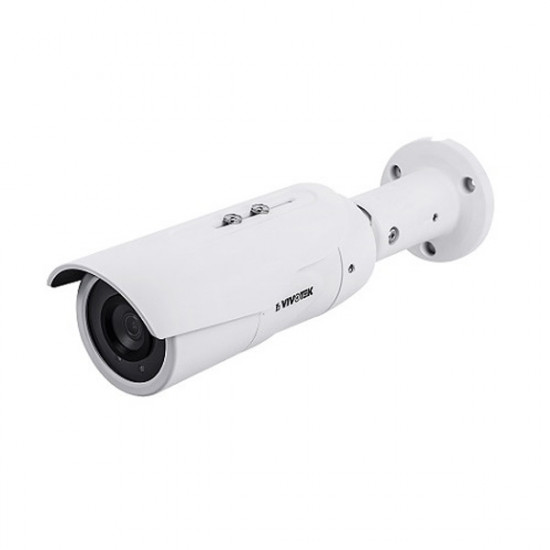

IB9389-EHT-V2 Vivotek 2.8~10mm Motorized 30FPS @ 5MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

Features:

• 30 fps @ 2560x1920, 60 fps @ 1920x1080
• WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
• Built-in IR Illuminators, Effective up to 30 Meters
• Smart IR Technology to Avoid Overexposure
• Trend Micro IoT Security
• Vandal-proof IK10-rated, Weather-proof IP66-rated Housing
• 2.8 ~ 10mm Motorized Lens

VIVOTEK’s IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 8GB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2.7" Progressive CMOS
• Max. Resolution - 2560x1920 (5MP)
• Lens Type - Motorized, Vari-focal, Remote Focus
• Focal Length - f= 2.8 ~ 10 mm
• Aperture - F1.8 ~ F2.74
• Iris type - Fixed-iris
• Field of View - 95°~41° (Horizontal), 69°~31° (Vertical), 127°~51° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR Illuminators up to 30 meters with Smart IR
• Minimum Illumination - 0.06 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids - Remote focus, remote zoom

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams - 3 video streams (Up to 8 configurable profiles)
• S/N Ratio - 55 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant bitrate control, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation), day /night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control(exposure lev el, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled prof ile settings

Network

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

• Smart Motion Detection - Fiv e-window v ideo motion detection, human detection, time filter (Without bounding box)
• Smart VCA - Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, f ace detection, crowd detection, running detection
• VADP Package - Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-y ear f ree trial) *License required. Free trial license is not supported.

Alarm and Event

• Event Trigger - Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boo
• Event Action - Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0
• Power Consumption - Max. 12.95 W (IR on), Max. 9.95 W (IR off), Max. 12.95 W (IR on, Heater on), Max. 10.55 W (IR on, Heater off)
• Dimensions - Ø 88 x 308 mm
• Weight - 1 kg
• Certifications - EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety : CNS 14336-1)
• Operating Temperature - Starting Temperature: -30°C ~ 50°C (-13°F ~ 122°F), Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
• Humidity - 98% RH (non-condensing)
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above, Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above

Included Accessories

• Packing Contents - Quick installation guide, alignment sticker, screw pack
