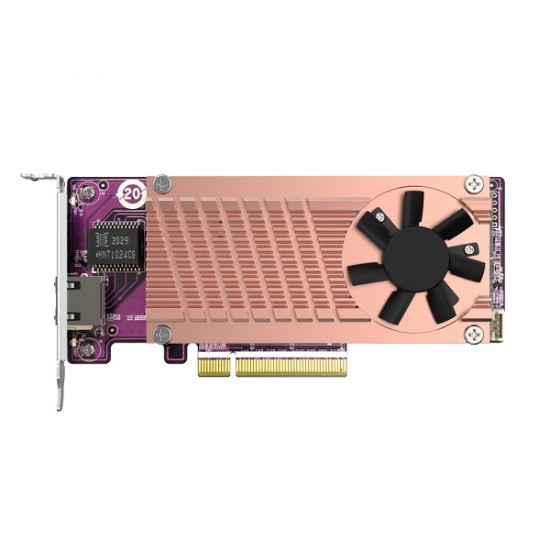

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

Features:

• M.2 SSD thermal sensors allow real-time M.2 SSD temperature monitoring
• A quiet cooling module (heatsink and smart fan) minimizes overheating risks to sustain constant high performance
• LED indicators for monitoring M.2 SSD status
• Tool-less quick installation and replacement M.2 SSD

The QM2-2P10G1TB allows for adding M.2 NVMe SSDs to increase the storage capacity of your Windows/Linux PC/workstation while also boosting overall IOPS performance by offloading bandwidth-demanding tasks to the SSDs. It is ideal for tasks such as inline video-editing, gaming, and other applications that require low latency, reduced loading times, and high bandwidth. Highly energy efficient and cost-effective, the QM2-2P10G1TB provides a high-performance storage expansion and 10GbE solution.

Specifications

• Controller - Marvell AQC113C
• Connector - 2 x M.2 2280 PCIe (Gen3 x4) NVMe SSD slots
• PCIe and Lanes - PCIe Gen3 x8
• Bracket - Low-profile (default). Low-profile flat and Full-height brackets are also included.
• Dimensions (L x W x H) - 6.01 × 2.71 × 0.74 inch
• Form factor - Low-profile
• Cable - RJ-45; over CAT-6 class cable
• Note [NAS] - Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1)
• Note [PC] - Note: Windows devices: The driver for QM2-2P10G1TB is required

QM2-2P10G1TB Specifications PDF
