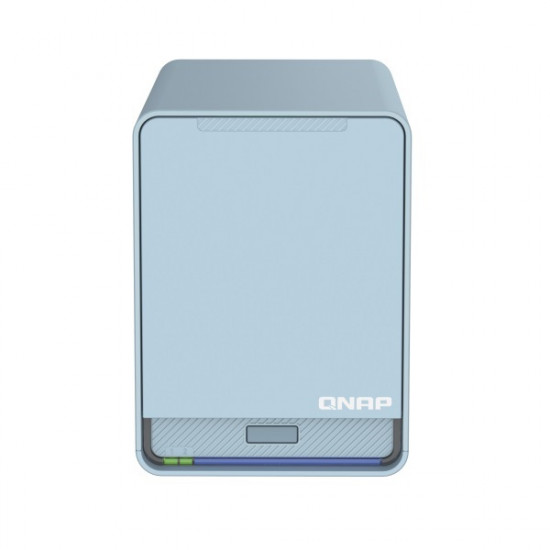

QMiroplus-201W-US QNAP WiFi Mesh Tri-band Home SD-WAN Router

Features:

• Supports Mesh Wi-Fi Handover, allowing wide-coverage connectivity. Tri-Band Wi-Fi guarantees smooth and stable Wi-Fi connections via 2.4GHz, 5GHz and dedicated Mesh 5GHz frequencies
• Supports QTS/QuRouter dual-system with home cloud 2.0 solution for easier NAS applications and routing configuration
• Easily and securely connect to your company networks and multi-site VPN using the built-in QNAP SD-WAN solution, QuWAN
• Use the QMiroPlus-201W as a home storage and entertainment center with various apps for file management, backup, and multimedia
• HybridMount integrates mainstream cloud services and local caching, allowing you to access cloud-based files as if they were stored locally
• One 2.5GbE host management port and four Gigabit ports for flexible LAN and WAN deployment

To embrace the new normal of remote working, businesses must deploy not only a remote VPN that is quickly accessible by multi-location users, but also a high-speed in-premises wireless network and a smarter file storage solution. The QMiroPlus-201W with QNAP Home Cloud 2.0 Solution combines a Mesh Wi-Fi AC2200 router and 2.5GbE NAS to decomplicate your network settings. With two 2.5-inch SATA drive bays and SD-WAN technology, QMiroPlus-201W integrates multi-cloud environments allowing you to centrally manage and access locally-stored and cloud-based files and data, building next-generation networks for homes and remote working.

Specifications

• Number of Ethernet Ports - 5
• 2.5GbE Host Port(RJ45) - 1
• 1GbE (RJ45) - 4
• CPU - Router: Qualcomm IPQ4019, Quad 4cores ARM Cortex A7@716.8MHz NAS: Intel Gemini Lake J4125 4cores @2.0Ghz
• Memory - Router: 512MB DDR3, NAS: 4GB DDR4
• Flash - Router: 4MB SPI NOR Flash+4GB eMMC, NAS:4GB eMMC
• Wireless Antenna - 4 Internal Antennas
• Wireless Standard - 802.11a/b/g/n/ac
• Wireless Speed Rating - AC2200
• Wireless Speed 2.4 GHz - 2.4G (400Mbps): 2x2 Dual Band(20/40MHz)
• Wireless Speed 5 GHz - 5G (867+867Mbps): 2x2 Dual Band(20/40/80MHz), 2x2 Single Band (20/40/80MHz)
• Frequency Band 2.4 GHz - Yes
• Frequency Band 5 GHZ - Yes
• Wireless Bandwidth - 20/40/80MHz
• Transmit Output Power - Depends on country code
• Wireless Antenna Type - 2 Internal dual band(2.4G/5G) antennas, 2 Internal single band(5G) antennas
• Antenna Gain 2.4 GHz - 2.5dBi, 2.6dBi
• Antenna Gain 5 GHz - 4.6dBi, 4.4dBi
• Wi-Fi 5 (802.11ac) - Yes
• USB 3.2 Gen 1 port - 2
• Bluetooth - Version 5
• Bluetooth Antenna Gain - 3.42dBi
• Button - Power(for NAS), Reset, WPS
• Power - 12V DC
• Power consumption - 60W
• Dimensions - 183.5x105x143.5
• Weight - 1.44Kg
• Packing weight - 2.15Kg
• Operating Temperature - 0°C ~ +40°C
• Operating Humidity - 5% to 95% non-condensing
• Certifications - JATE / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM / OFCA
• Wi-Fi Mesh - Yes (with Tri-Band)
• QNAP SD-WAN solution, QuWAN - Yes
• Drive Bay - 2 x 2.5-inch SATA 3Gb/s(Compatible with 6Gb/s SSD/HDD)
• Drive Compatibility - 2.5-inch bays: 2.5-inch SATA solid state drives, 2.5-inch SATA hard disk drives

QMiroplus-201W-US Specifications PDF
