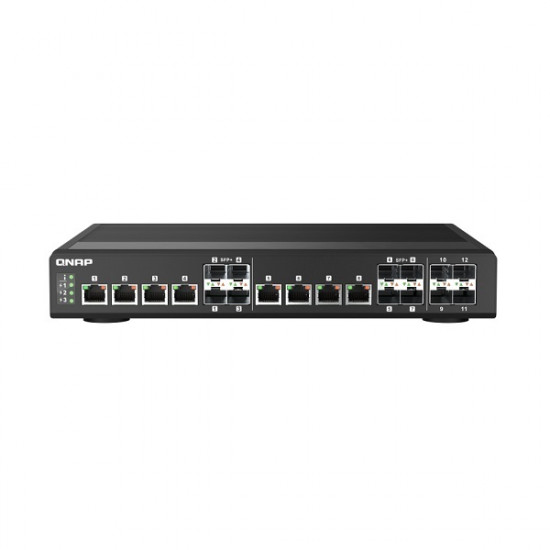

QSW-IM1200-8C-US QNAP Rackmount Switch, Management Switch, 12 Port of 10GbE Port Speed, 4 10GbE SFP+ Port, 8 Port SFP+/ NBASE-T Combo, Support for 5-Speed Auto Negotiation (10G/5G/2.5G/1G/100M)

Features:

• With an industrial hardened IP20 metal case, fanless design and ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius. The redundant DC power supply and circuit breaker also guarantees continuous operation
• The QSW-IM1200-8C is equipped with eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-IM1200-8C offers higher transmission speeds when used with existing cables
• The QSW-IM1200-8C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for users to efficiently control network bandwidth and enhance security
• Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central industrial network management intuitive and easy
• Supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention
• Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-IM1200-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections

The rugged 12-Port 10GbE Managed Switch QSW-IM1200-8C has four 10GbE SFP+ fiber ports, eight 10GbE SFP+/RJ45 combo ports, and supports Layer 2 switching and network management to provide a user-friendly entry-level network management solution. With a robust industrial-grade hardware design and operating temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed spaces, the QSW-IM1200-8C enables high-speed network deployment in the rugged environments of Industry 4.0, smart transportation, and smart cities.

Specifications

• Management Type - Web Managed
• Number of Ports - 12
• 10GbE SFP+ - 4
• 10GbE SFP+/RJ45 Combo Ports - 8
• Management Port - 1 x 1GbE RJ45
• Power Supply Description - Adapter
• Max. Power Consumption - 78W
• Input Power Type - DC
• Input Voltage Range - 9V-54V
• MAC Address Table - 16K
• Total Non-Blocking Throughput - 120Gbps
• Switching Capacity - 240Gbps
• Management Interface - Web
• Console - RS232
• Energy Efficient Ethernet (IEEE 802.3az complaint) - Yes
• Fanless - Yes
• Supported Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3bz 2.5G/5GBase-T
  • IEEE 802.3an 10G BASE-T
  • IEEE 802.3z 1000BASE-SX/LX
  • IEEE 802.3ae 10G Fiber
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1w RSTP
  • IEEE 802.3ad LACP
  • IEEE 802.1AB LLDP
  • IEEE 802.3az Energy Efficient Ethernet
  • (IEEE 802.1p Class of Service)
• Form Factor - Rackmount
• LED Indicators - Per Port: Speed/Link/Activity, Per System: Status/Power1/Power2/Power3
• Buttons - Reset button
• Dimensions (HxWxD) - 43.5 x 285 x 238 mm
• Weight (Net) - 10.1 lbs
• Weight (Gross) - 11.71 lbs
• Operating Temperature - Natural convection (in airy environments 0.5~0.7m/s) operating temperature -30°C-65°C (-22°F –149°F) in airy environments, Non natural convection operating temperature -30°C-45°C (-22°F –113°F)
• Relative Humidity - 5~95% Non-condensing
• Certifications - CE, FCC, VCCI, BSMI
• Electromagnetic Compliance - Class A
• Jumbo Frames - 9K
• Warranty - 2 Years

QSW-IM1200-8C-US Specifications PDF
